REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

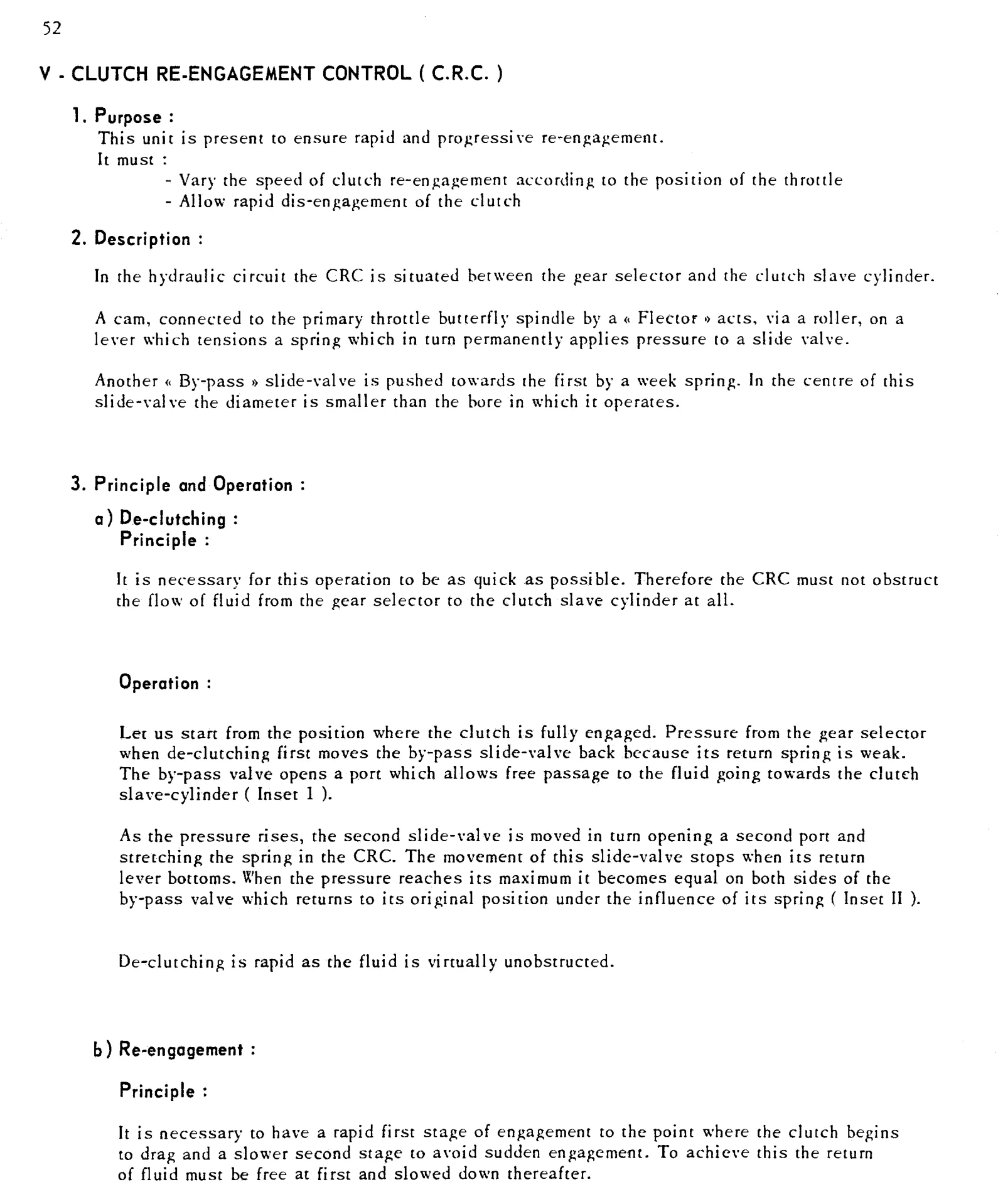

52 V - CLUTCH RE-ENGAGEMENT CONTROL (C.R.C. ) 1. Purpose : This unit is present to ensure rapid and progressive Tt must : - Vary the speed of clutch re-engagement according to the position of the throttle - Allow rapid dis-engagement of the clutch 2. Description : In the hydraulic circuit the CRC is situated between the gear selector and the clutch slave cylinder.
