REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.52)

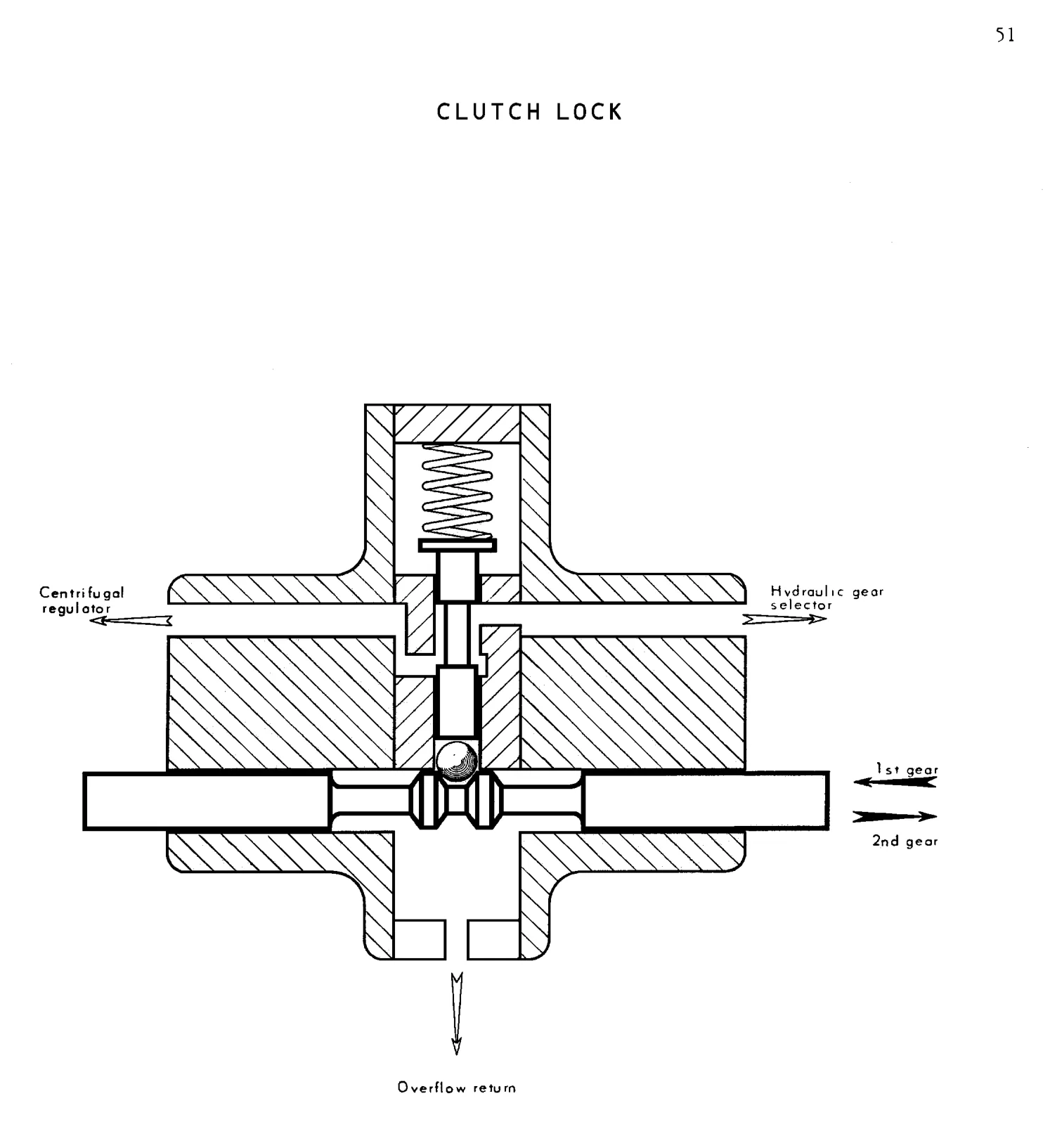

It comprises : - 1 body - 1 slide-valve sleeve - 1 slide-valve with a central groove - 1 return spring for the slide-valve - 1 ball control rod and ball This ball control rod is connected to the selector fork shaft for 1st and 2nd gears by a lever and spring. Principle : The principle is to block the pressure-release circuits if either Ist or 2nd gears are not fully engaged; or neutral. . Operation :
