REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.30)

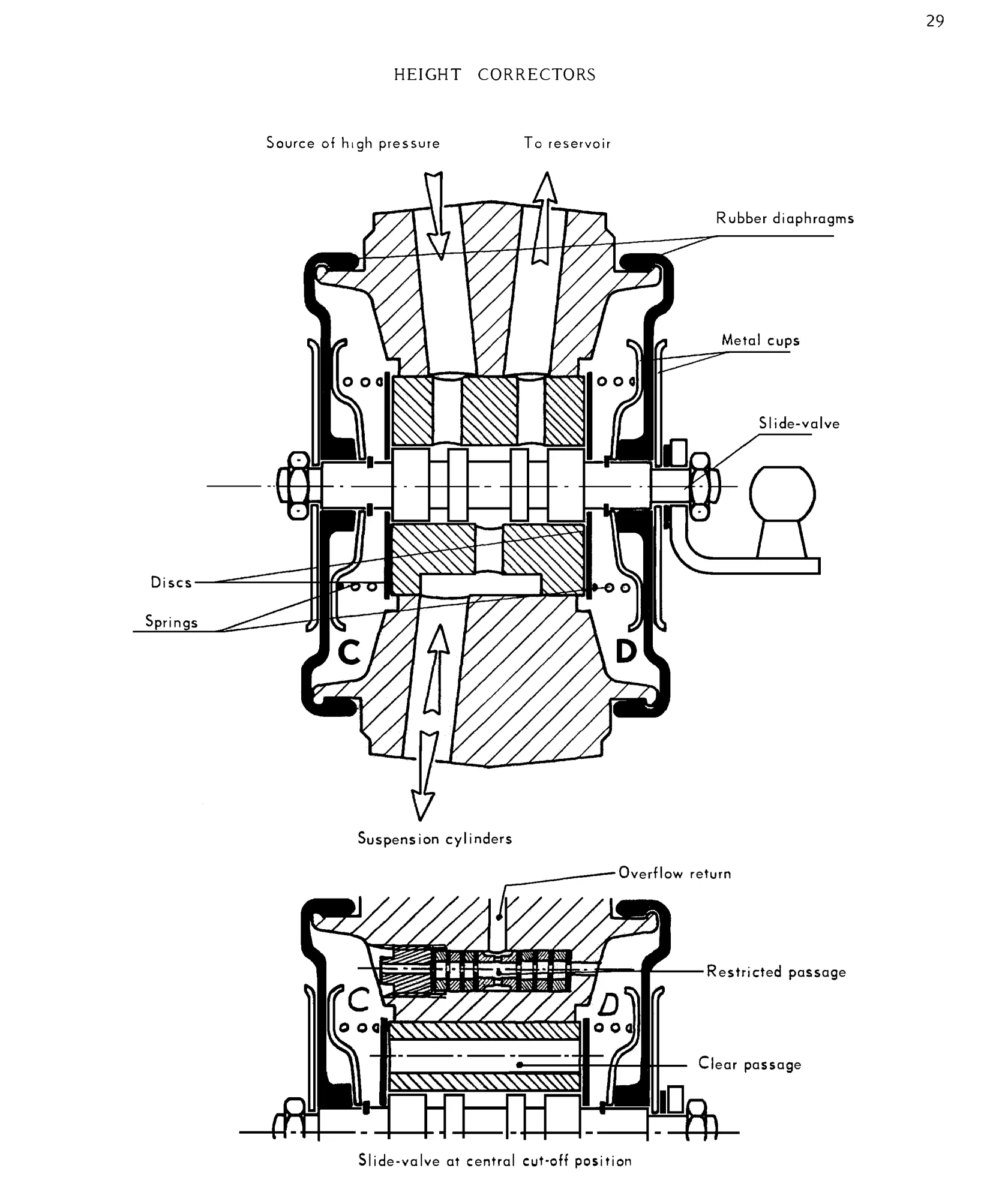

The chambers C and D, sealed by rubber diaphragms ( by metal cups ) are full of hydraulic fluid which comes from the seepage past the slide-valve. A seepage return takes the surplus fluid back to the reservoir. Chambers C and D are interconnected by :
