REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

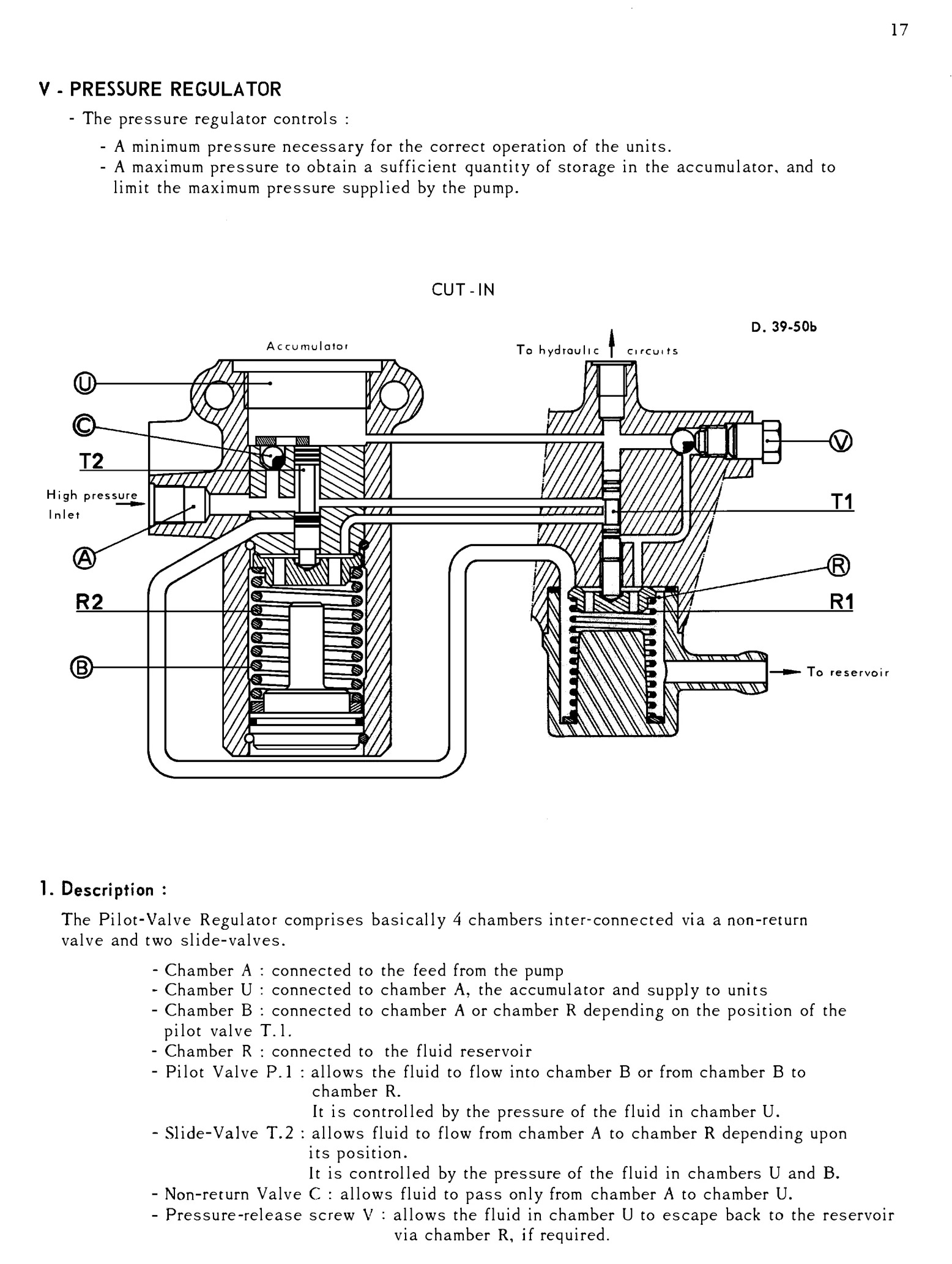

V - PRESSURE REGULATOR - The pressure regulator controls : - A minimum pressure necessary for the correct operation of the units. - A maximum pressure to obtain a sufficient quantity of storage in the accumulator, and to limit the maximum pressure supplied by the pump. CUT -IN D. 39-50b Accumulator To hydraulic | circuits ts, Inlet a 1. Description :
