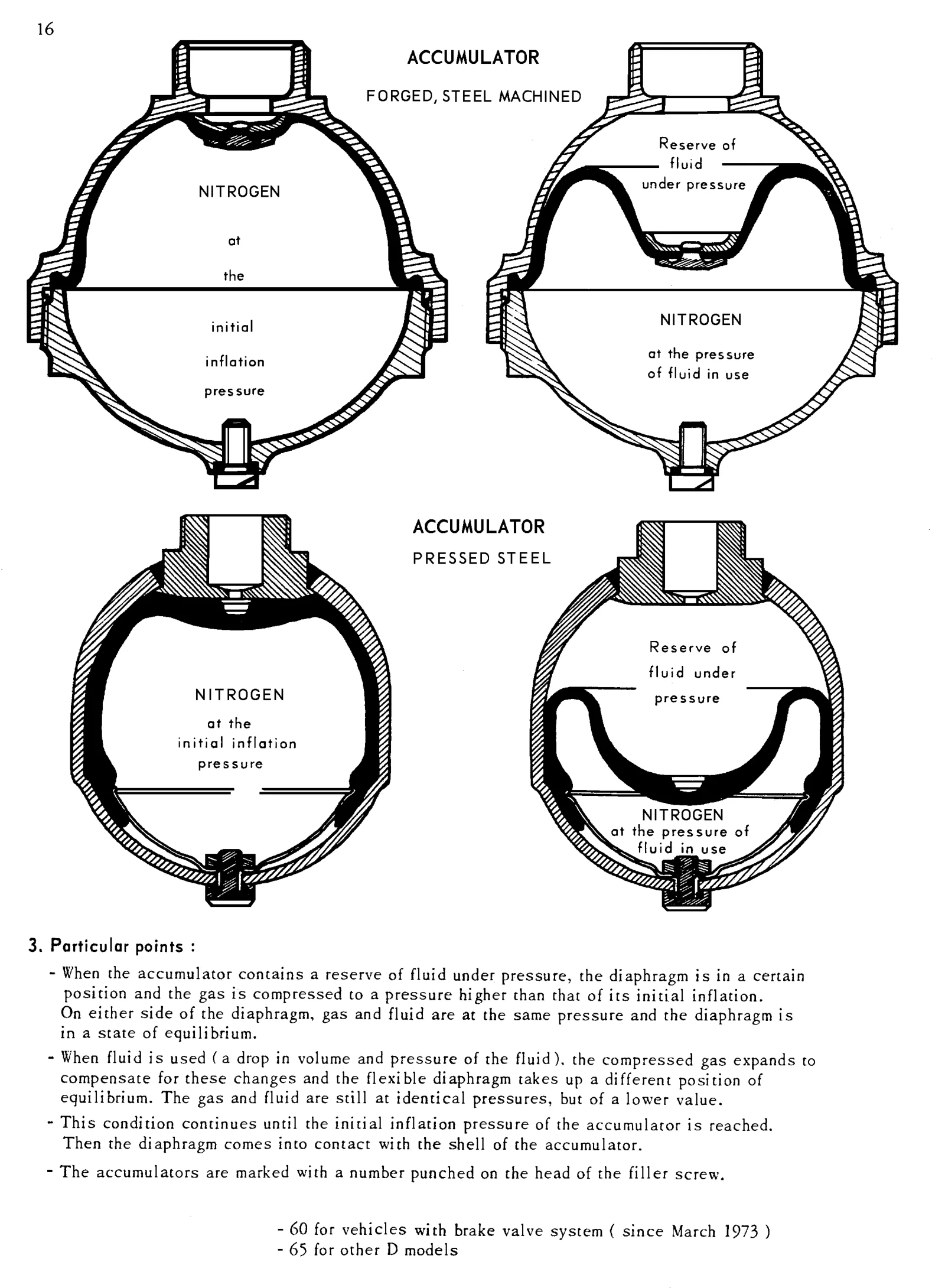

- The pump delivery is 2.80 cc per turn or 840 cc per minute at an engine speed of 600 r.p.m. with a new pump. ( The pump tuns at half engine speed ). e) Pressure : Minimum pressure : - While the pump is idling, the pressure is only enough to return the fluid to the reservoir through the pressure-regulator. Maximum pressure : - Theoretically there is no limit to the maximum pressure. - In practice, the maximum pressure is controlled by the pressure-regulator. IV.- MAIN ACCUMULATOR
