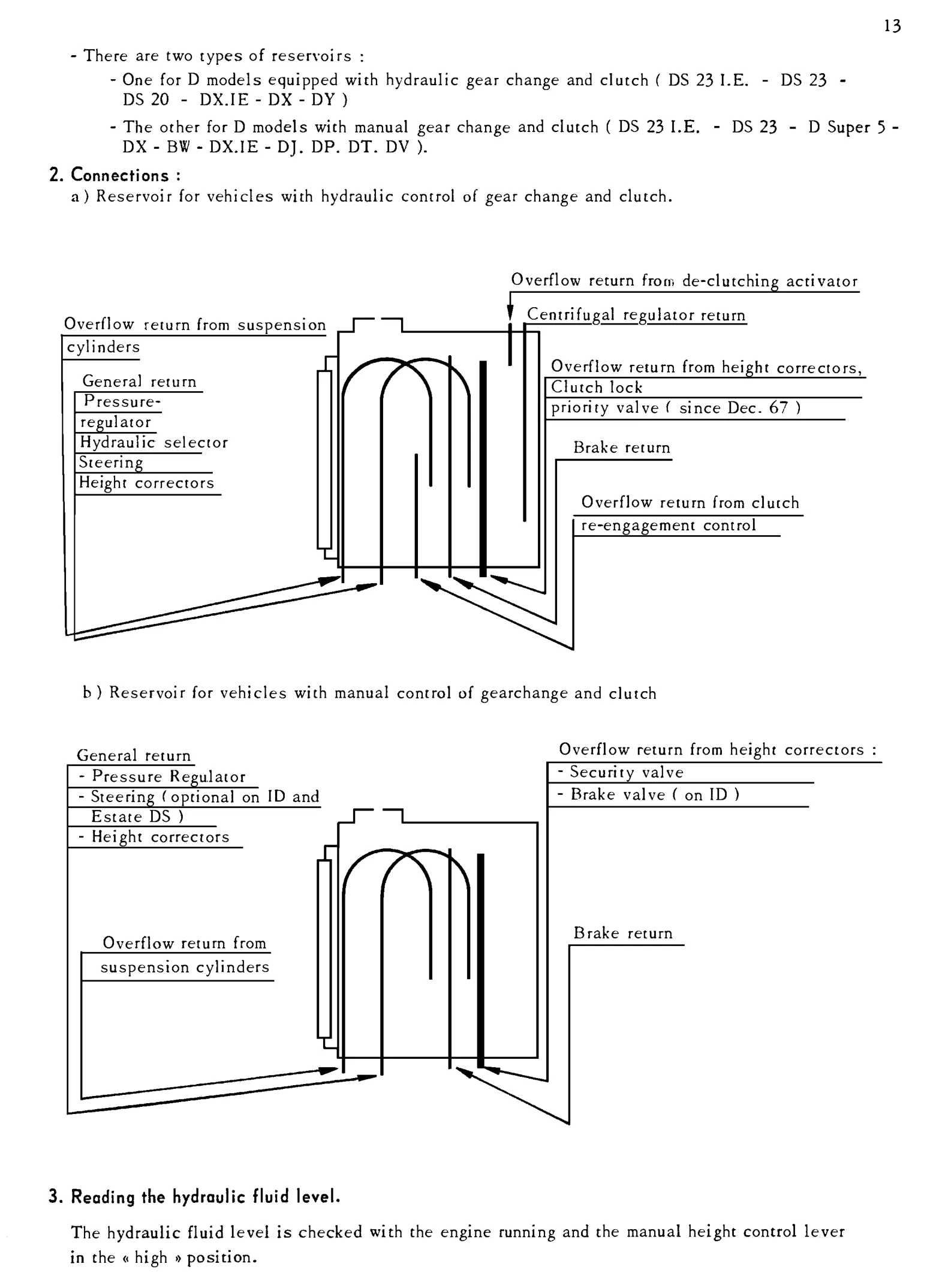

- There are two types of reservoirs : - One for D models equipped with hydraulic gear change and clutch ( DS 23 I.E. - DS 23 - DS 20 - DX.IE - DX - DY ) - The other for D models with manual gear change and clutch ( DS 23 I.E. - DS 23 - D Super 5 - DX - BW - DX.IE - DJ. DP. DT. DV ). 2. Connections : a) Reservoir for vehicles with hydraulic control of gear change and clutch.
