REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

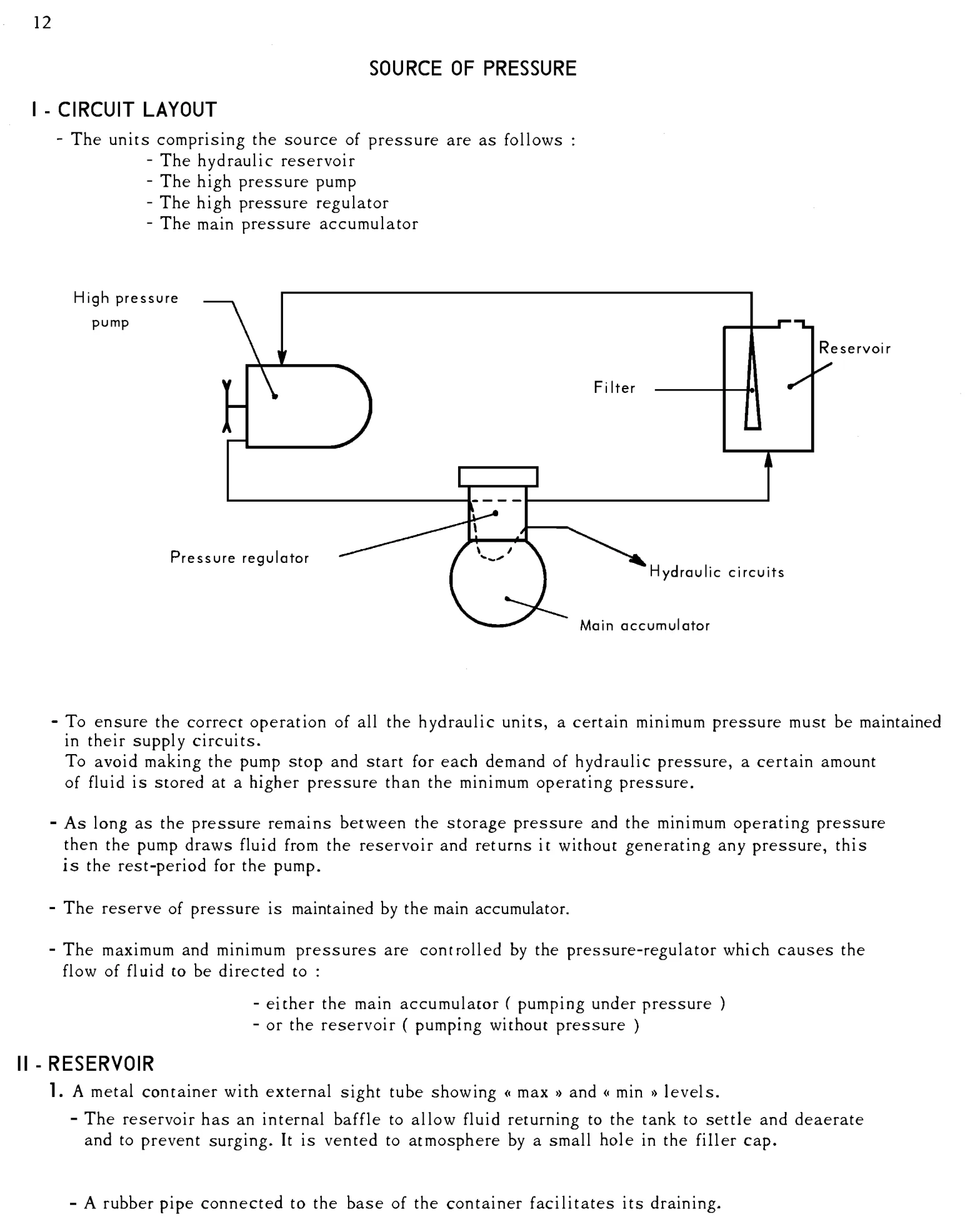

12 SOURCE OF PRESSURE | - CIRCUIT LAYOUT - The units comprising the source of pressure are as follows : - The hydraulic reservoir - The high pressure pump - The high pressure regulator - The main pressure accumulator High pressure pump Reservoir Pressure regulator Hydraulic circuits Main accumulator
