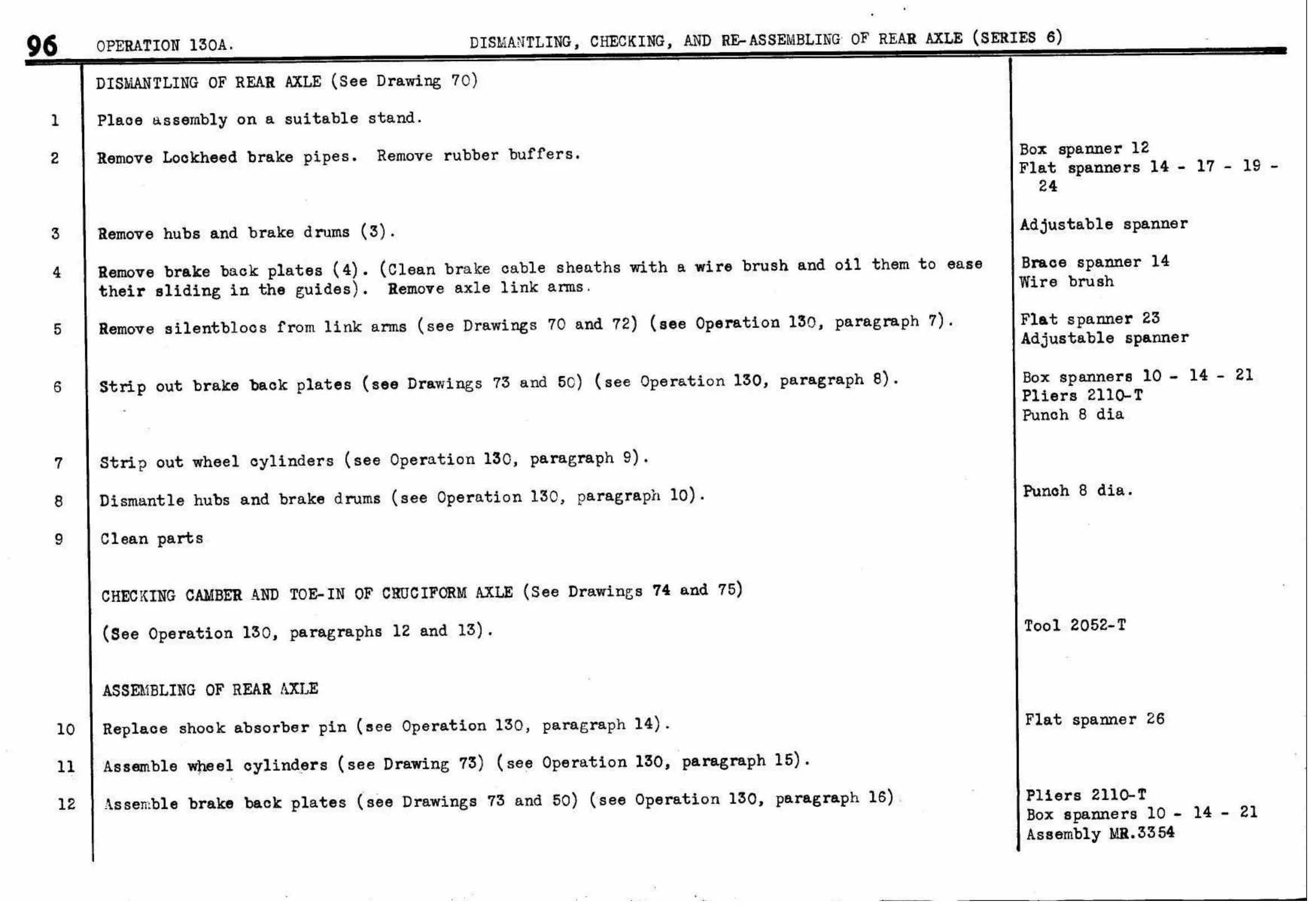

OPERATION 130A. DISMANTLING OF REAR AXLE (See Drawing 70) Place assembly on a suitable stand. Remove Lockheed brake pipes. Remove rubber buffers. Remove hubs and brake drums (3). Remove brake back plates (4). (Clean brake cable sheaths with a wire brush and oil them to ease their sliding in the guides). Remove axle link arms. Remove from link arms (see Drawings 70 and 72) (see Operation 150, paragraph Des
