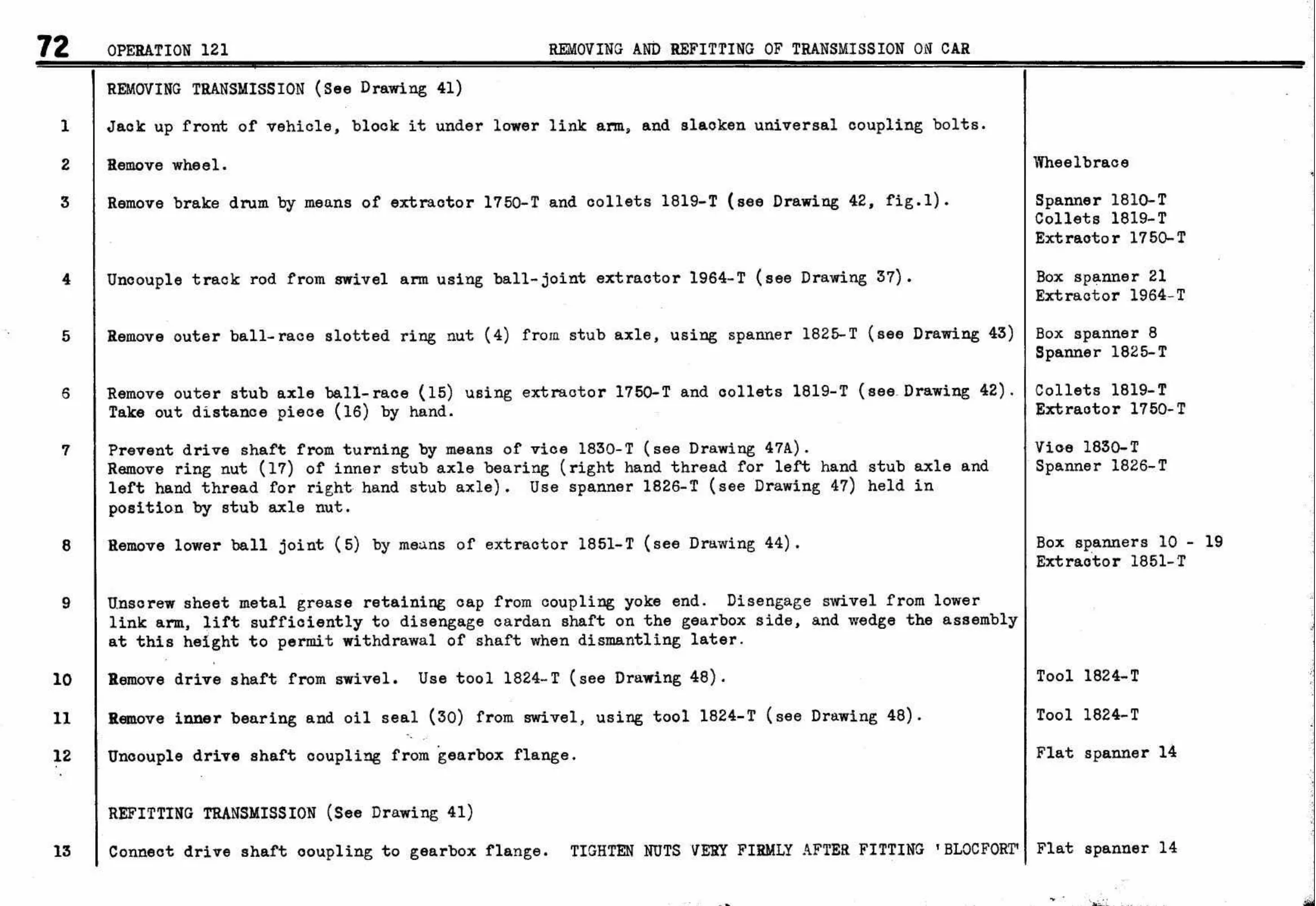

OPERATION 121 REMOVING AND REFITTING OF TRANSMISSION ON CAR REMOVING TRANSMISSION (See Drawing 41) Jack up front of vehicle, block it under lower link arm, and slacken universal coupling bolts. Remove wheel. Remove brake drum by means of extractor 1750-T and collets 1819-T (see Drawing 42, fig.1). Uncouple track rod from swivel arm using ball-joint extractor 1964-T (see Drawing 37).
