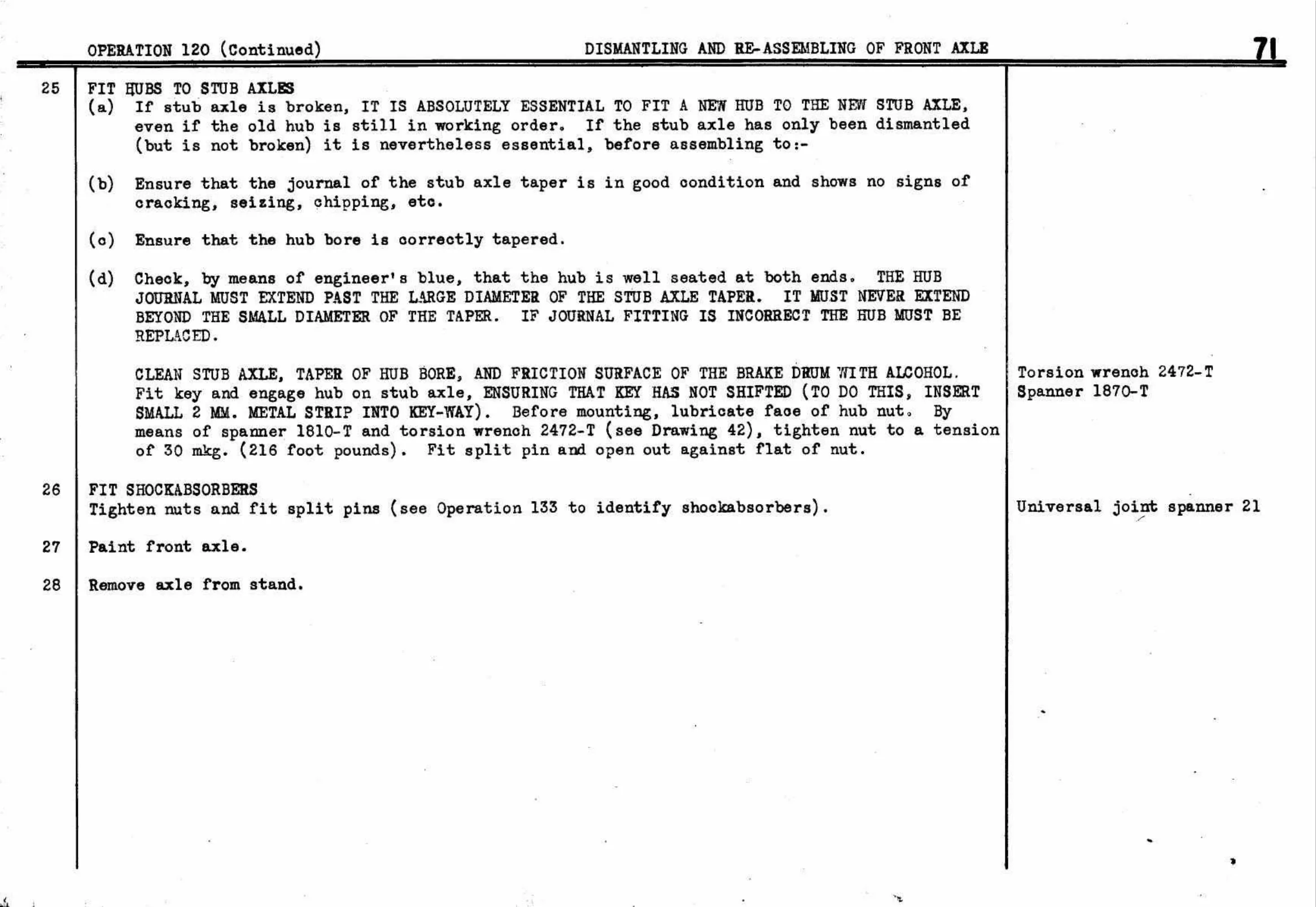

OPERATION 120 (Continued) DISMANTLING AND RE-ASSEMBLING OF FRONT AXLE ee ——————————————————————————— FIT HUBS TO STUB AXLES If stub axle is broken, IT IS ABSOLUTELY ESSENTIAL TO FIT A NEW HUB TO THE NEW STUB AXLE, even if the old hub is still in working order. If the stub axle has only been dismantled (but is not broken) it is nevertheless essential, before assembling to:-
