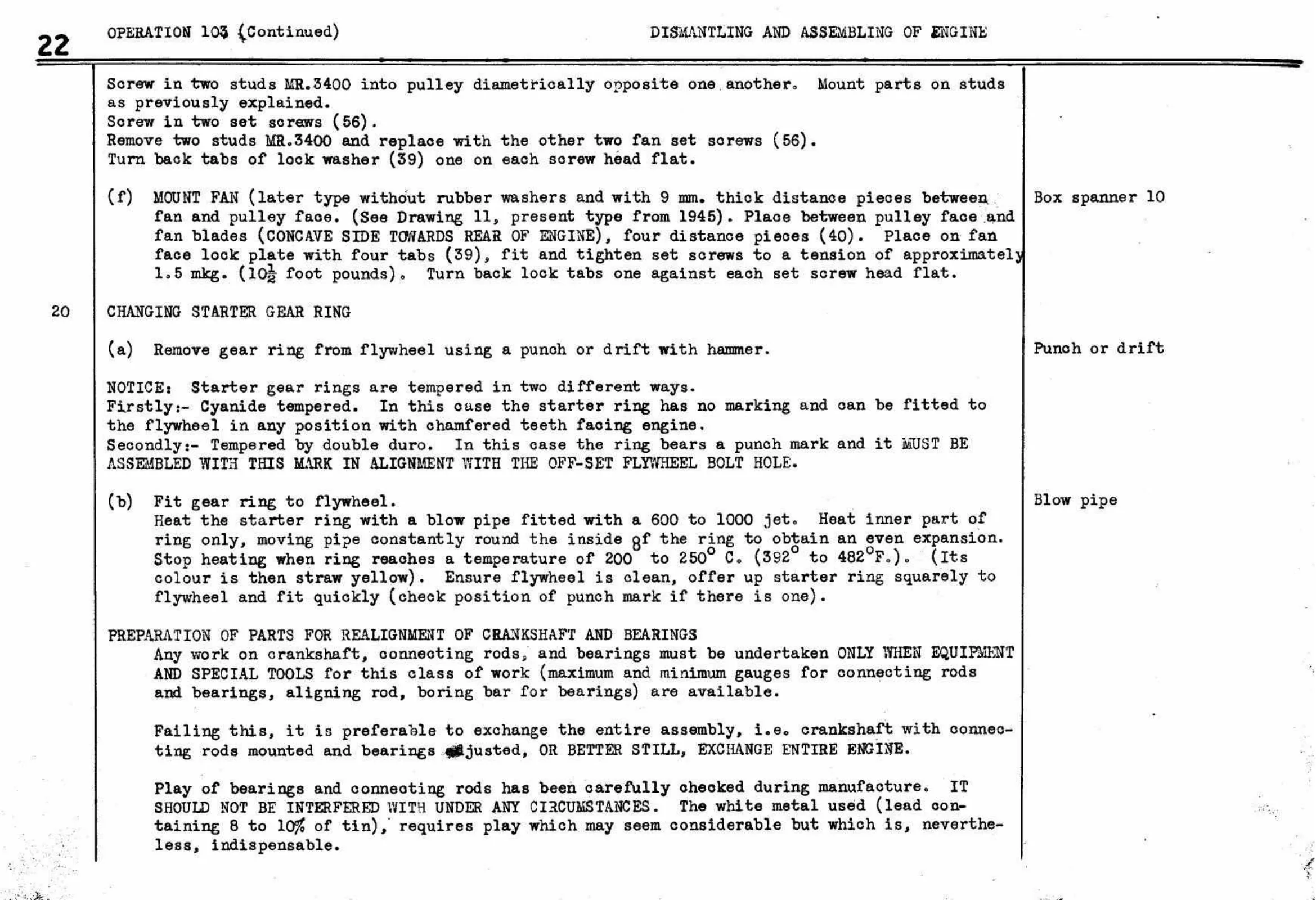

Dismantling – Engine, page 25 of 260 — Twelve & Fifteen Repair Manual — Text
Page ↔ Forum
Start a discussion
Find related SP-6
light15 · p.25
EXTRACTED TEXT — FOR REFERENCE ONLY

STP eILewes Tt! bo. pete See see Dee SAT Pee Pee) ee Nee > ops Ne Mae ee ek Screw in two studs MR.3400 into pulley diametrically opposite one another. Mount parts on studs as previously explained. Screw in two set screws (56). Remove two studs MR.3400 and replace with the other two fan set screws (56). Turn back tabs of lock washer (39) one on each screw head flat.
