Twelve & Fifteen Repair Manual — Text — Page 24

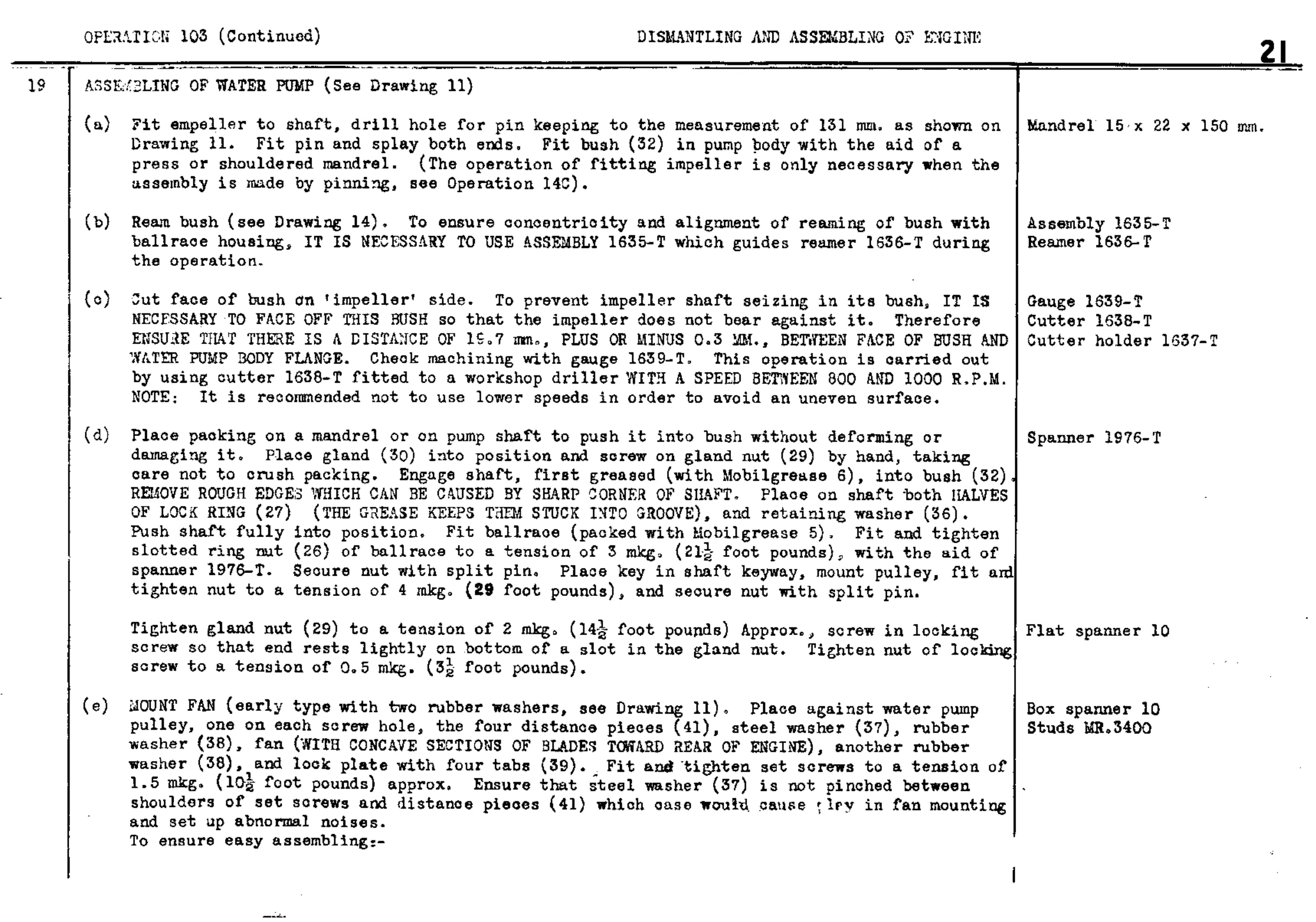

We ee SUT SN LM NE AA RAD RAS A Atte DUNE ARANES Ahk PARP Ade ANE NA de ONS oh Nh ASSEA2LING OF WATER PUMP (See Drawing 11) Fit to shaft, drill hole for pin keeping to the measurement of 131 mm. as shown on Drawing 11. Fit pin and splay both ends. Fit bush (32) in pump body with the aid of a press or shouldered mandrel. (The operation of fitting impeller is only necessary when the assembly is made by pinning, see Operation 14C).
