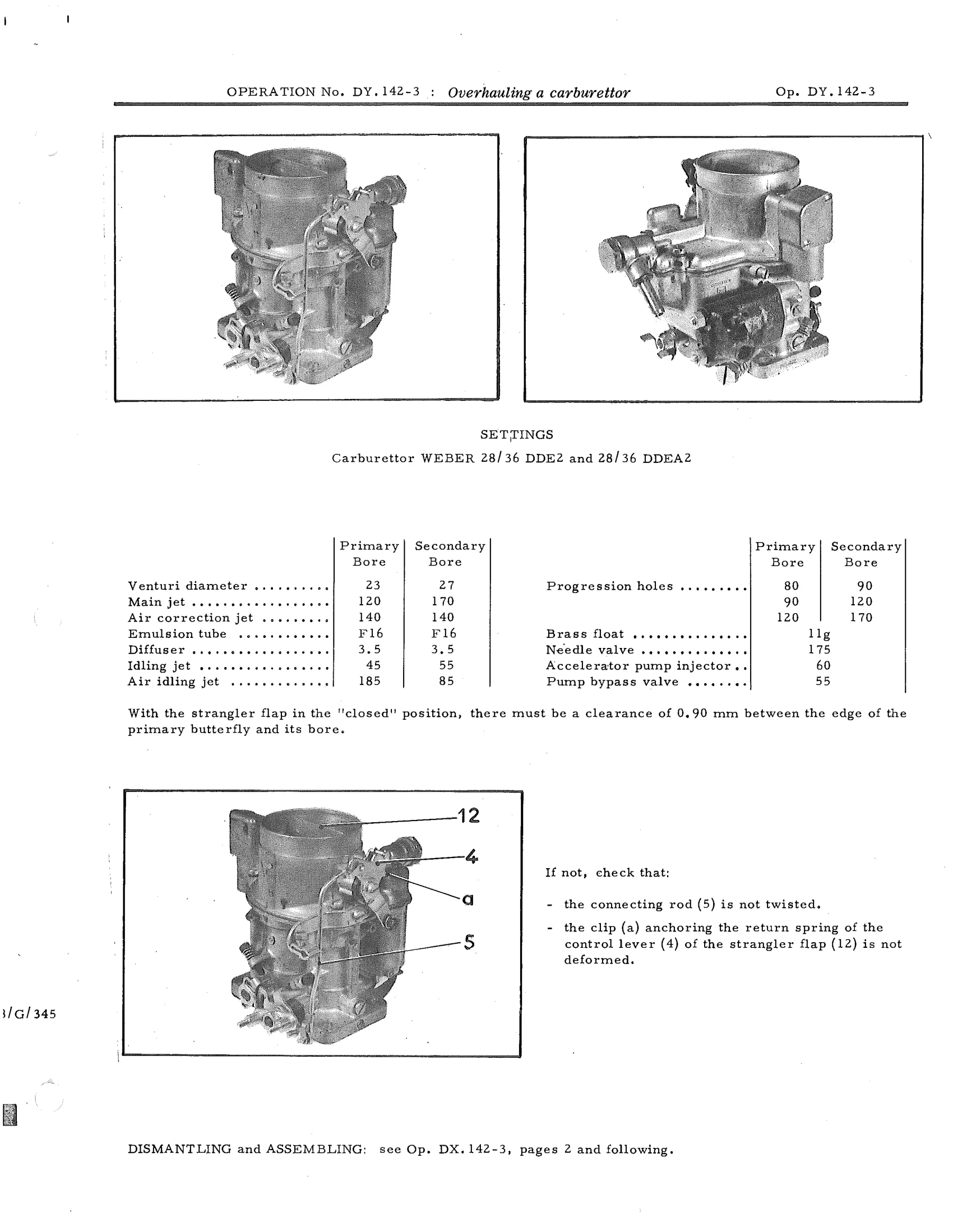

SETTINGS Carburettor WEBER 28/36 DDE2 and 28/36 DDEA2 Primary| Secondary Primary | Secondary Bore Bore Bore Bore Venturi diameter ........6. 23 27 Progression holes .......46 80 90 Main jet 120 170 90 120 Air correction jet . 140 140 120 170 Emulsion tube . F16 F16 Brass float ..... . Diffuser .....6. 3.5 3.5 Needle valve ...... 175 Idling jet . . 45 55 Accelerator pump injector.. 60 Air idling jet 185 85 Pump bypass valve ......6. 55
