DS21 & DS21M / DS19A & DS19MA Repair Manual — Page 353

Citroën
Repair Manual — DS21 & DS21M / DS19A & DS19MA
N°518, Edition 1966

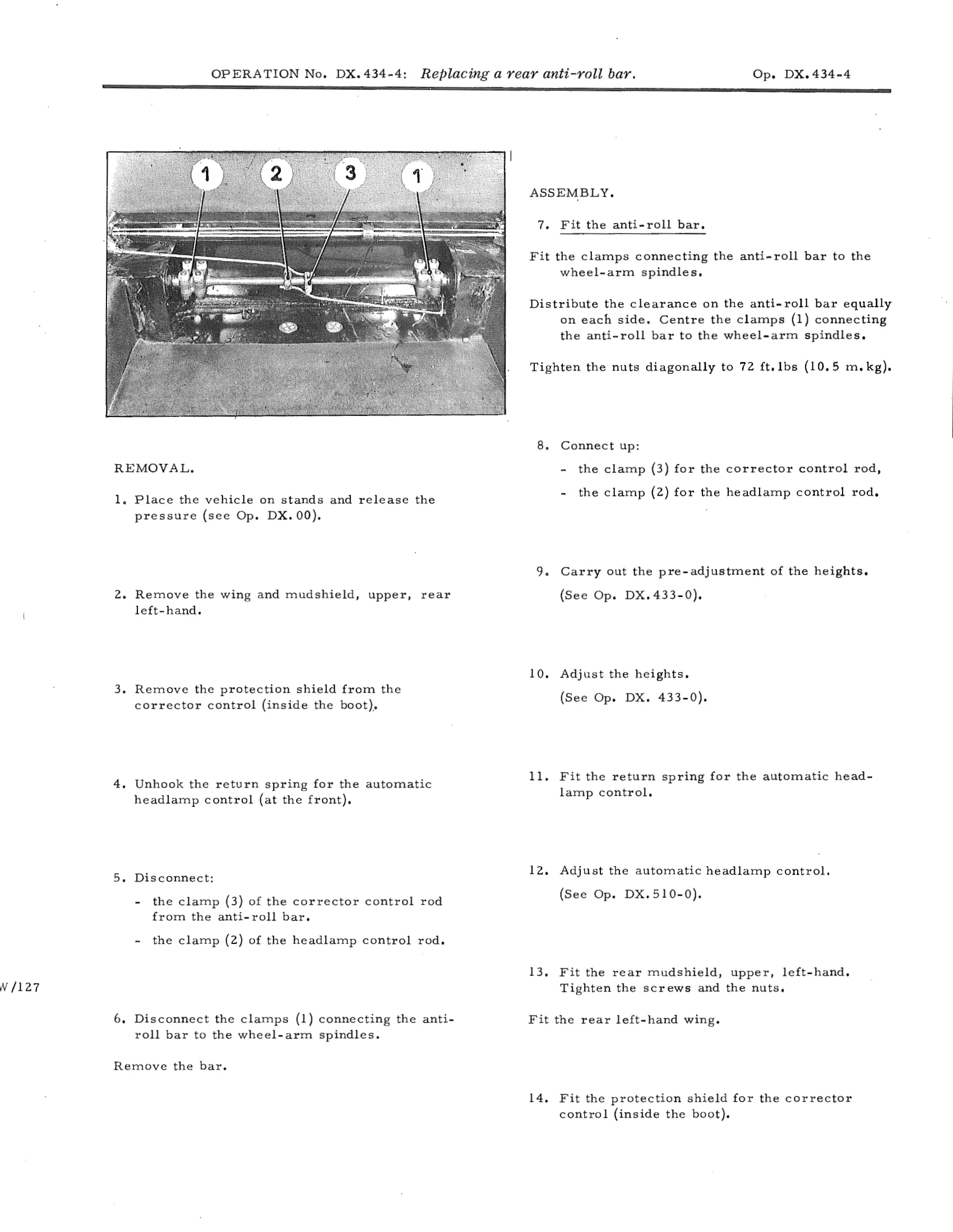

SECTION OVERVIEWReplacing a rear anti-roll bar
Replacing a rear anti-roll bar, page 353 of 750 — DS21 & DS21M / DS19A & DS19MA Repair Manual
Page ↔ Forum
Start a discussion
Find related SP-6
518 · p.353
EXTRACTED TEXT — FOR REFERENCE ONLY

V /127 REMOVAL. 1, Place the vehicle on stands and release the pressure (see Op. DX.00). 2. Remove the wing and upper, rear left-hand. 3, Remove the protection shield from the corrector control (inside the boot), 4, Unhook the return spring for the automatic headlamp control (at the front), 5. Disconnect: - the clamp (3) of the corrector control rod from the anti-roll bar. - the clamp (2) of the headlamp control rod,
