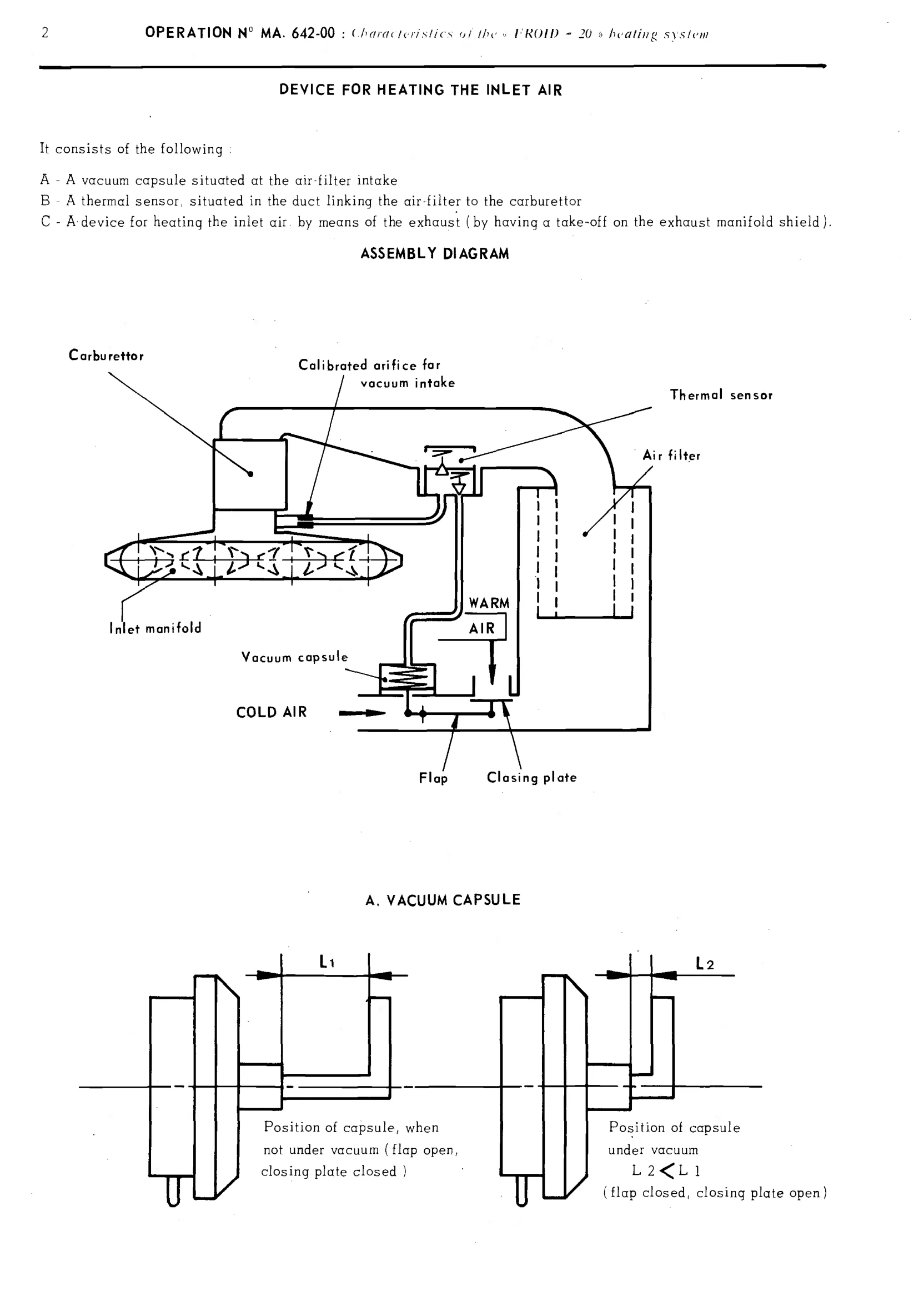

It consists of the following A - A vacuum capsule situated at the air-filter intake B - A thermal sensor, situated in the duct linking the air-filter to the C - A-device for heating the inlet air. by means of the exhaust (by having a take-off on the exhaust manifold shield). ASSEMBLY DIAGRAM Corburettor Calibrated far vacuum intake Thermal sensor Air filter Inlet manifold Vacuum capsule COLD AIR Flap Clasing plate A, VACUUM CAPSULE Position of capsule, when Position of capsule under vacuum L2<L1 (flap closed, closing plate open) not under vacuum (flap open, closing plate closed )
