EXTRACTED TEXT — FOR REFERENCE ONLY

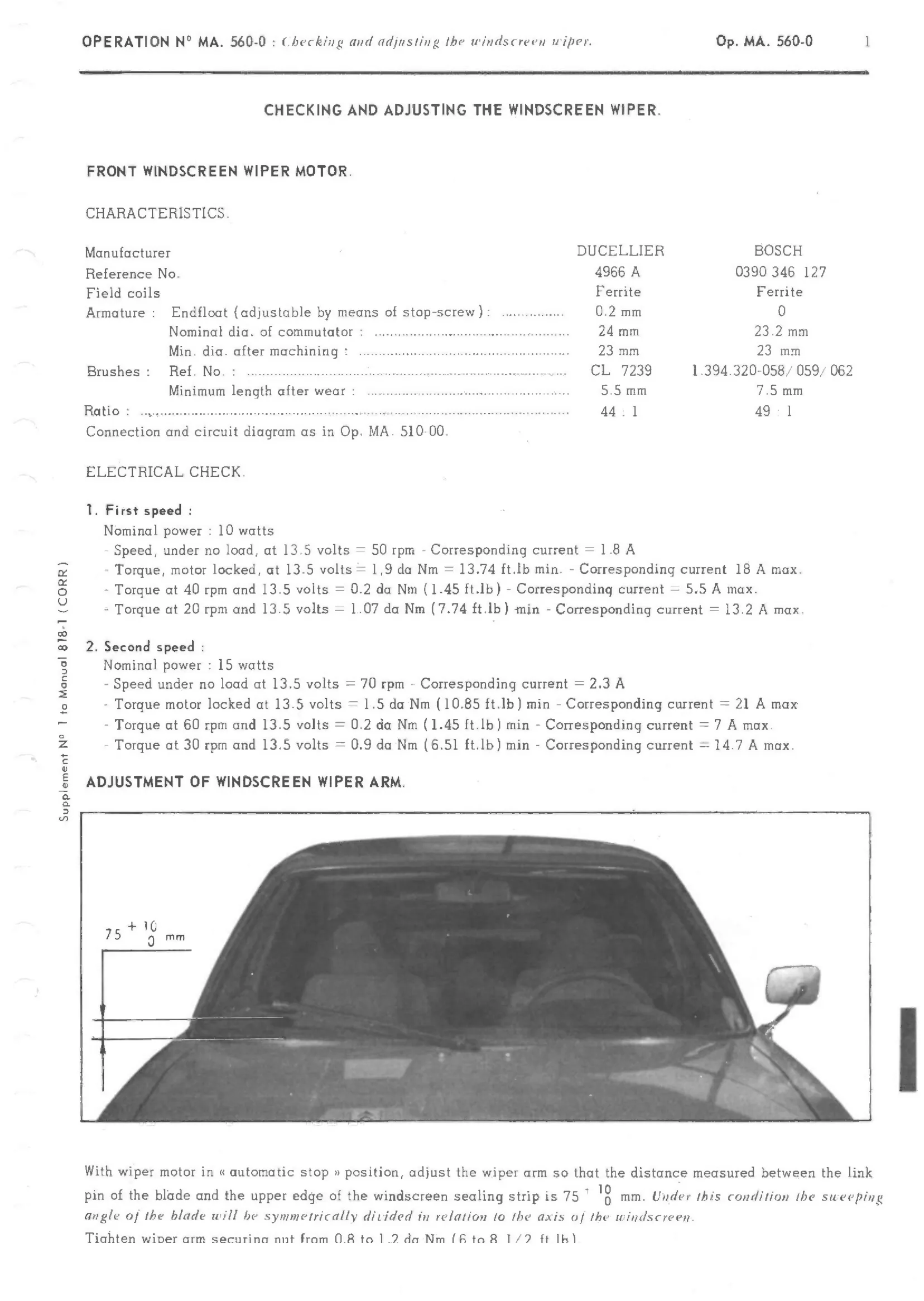

Supplement N° 1 to Manual 818-1 (CORR) FRONT WINDSCREEN WIPER MOTOR. CHARACTERISTICS. Manufacturer DUCELLIER BOSCH Reference No. 4966 A 0390 346 127 Field coils Ferrite Ferrite Armature: Endfloat {adjustable by means of stop-screw }: 0.2 mm 0 Nominal of commutator: cere 24mm 23.2 mm Min. after machining: .... 23 mm 23 mm Brushes: Ref. No. 2 CL 7239 1.394.320-058/ 059/ 062 Minimum length after wear : 5.5 mm 7.5mm Hable F 44:1 49) x 11 Connection and circuit diagram as in Op. MA. 510-00 ELECTRICAL CHECK.
Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
