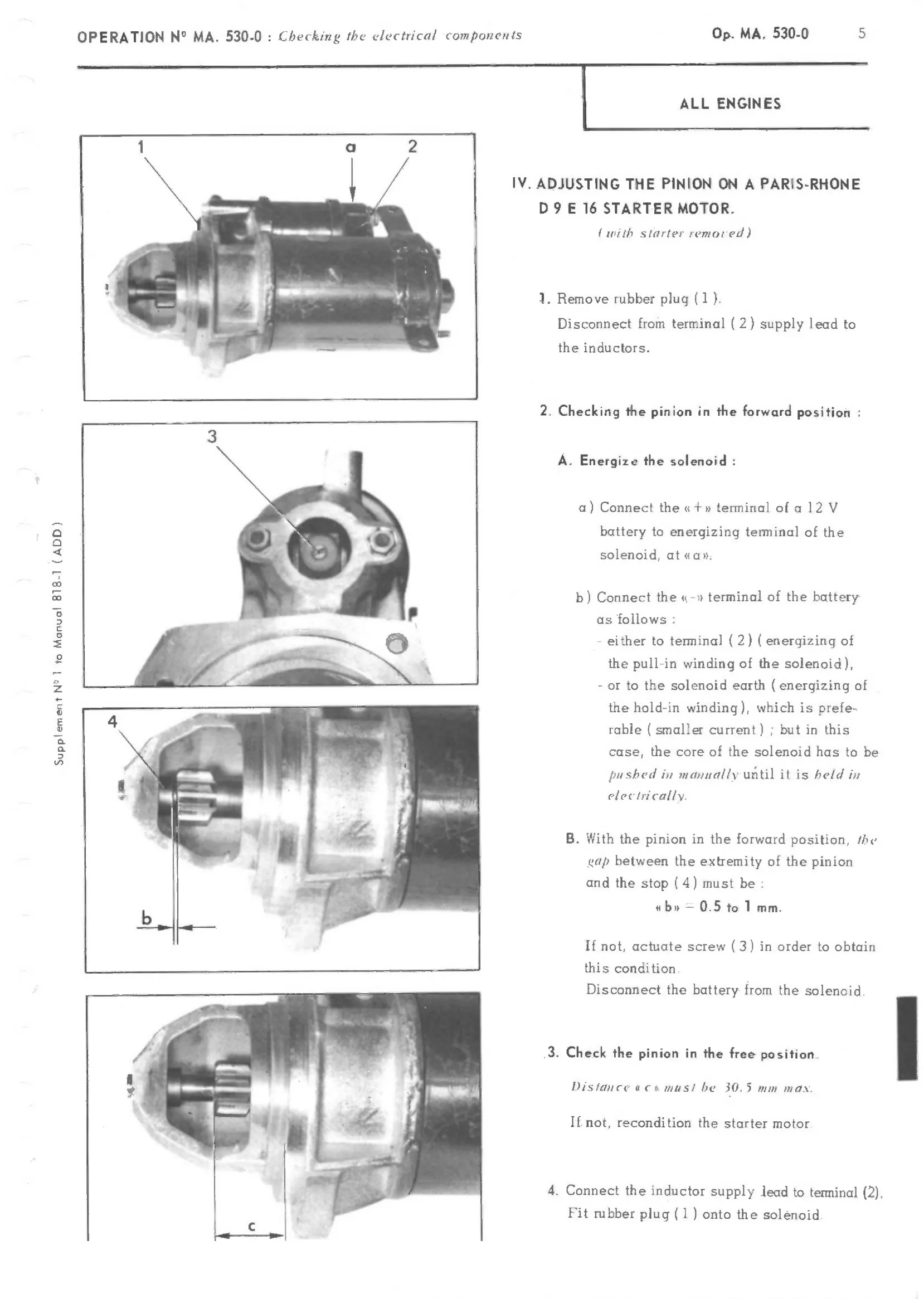

Supplement N?1 to Manual 818-1 (ADD) IV. ADJUSTING THE PINION ON A PARIS-RHONE D9 E 16 STARTER MOTOR. (with starter removed) 1. Remove rubber plug (1 }. Disconnect from terminal (2) supply lead to the inductors. 2. Checking the pinion in the forward position : A. Energize the solenoid : a) Connect the «+» terminal of a12 V battery to energizing terminal of the solenoid, at «a»: b) Connect the «-» terminal of the battery as follows :
Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
