EXTRACTED TEXT — FOR REFERENCE ONLY

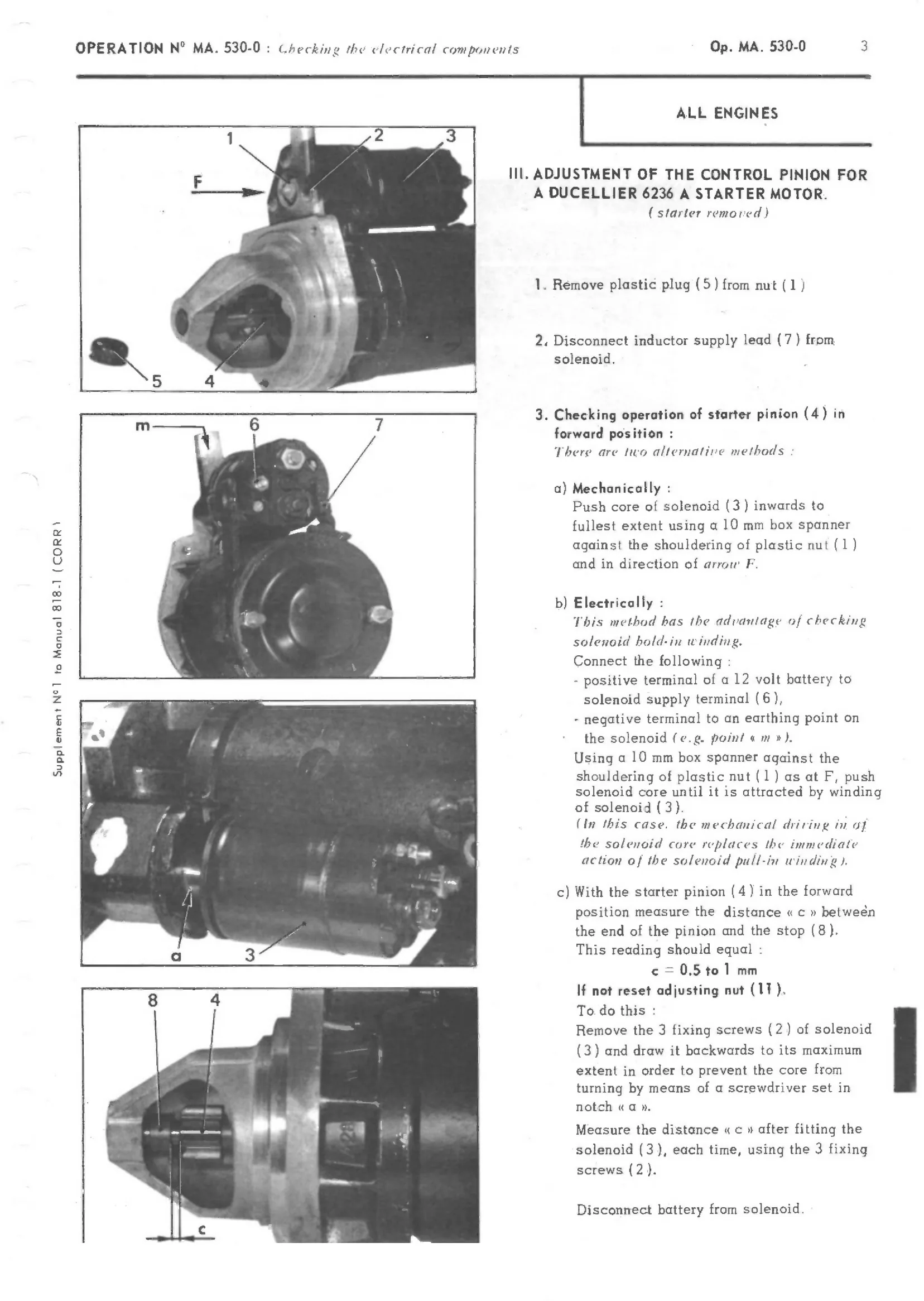

Supplement N°1 to Manual 818-1 (CORR! _ Il. ADJUSTMENT OF THE CONTROL PINION FOR A DUCELLIER 6236 A STARTER MOTOR. (starter removed) 1. Remove plastic plug (5) from nut (1) 2, Disconnect inductor supply lead (7) from solenoid. 3. Checking operation of starter pinion (4) in forward position : There are two alternative methods :
Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
