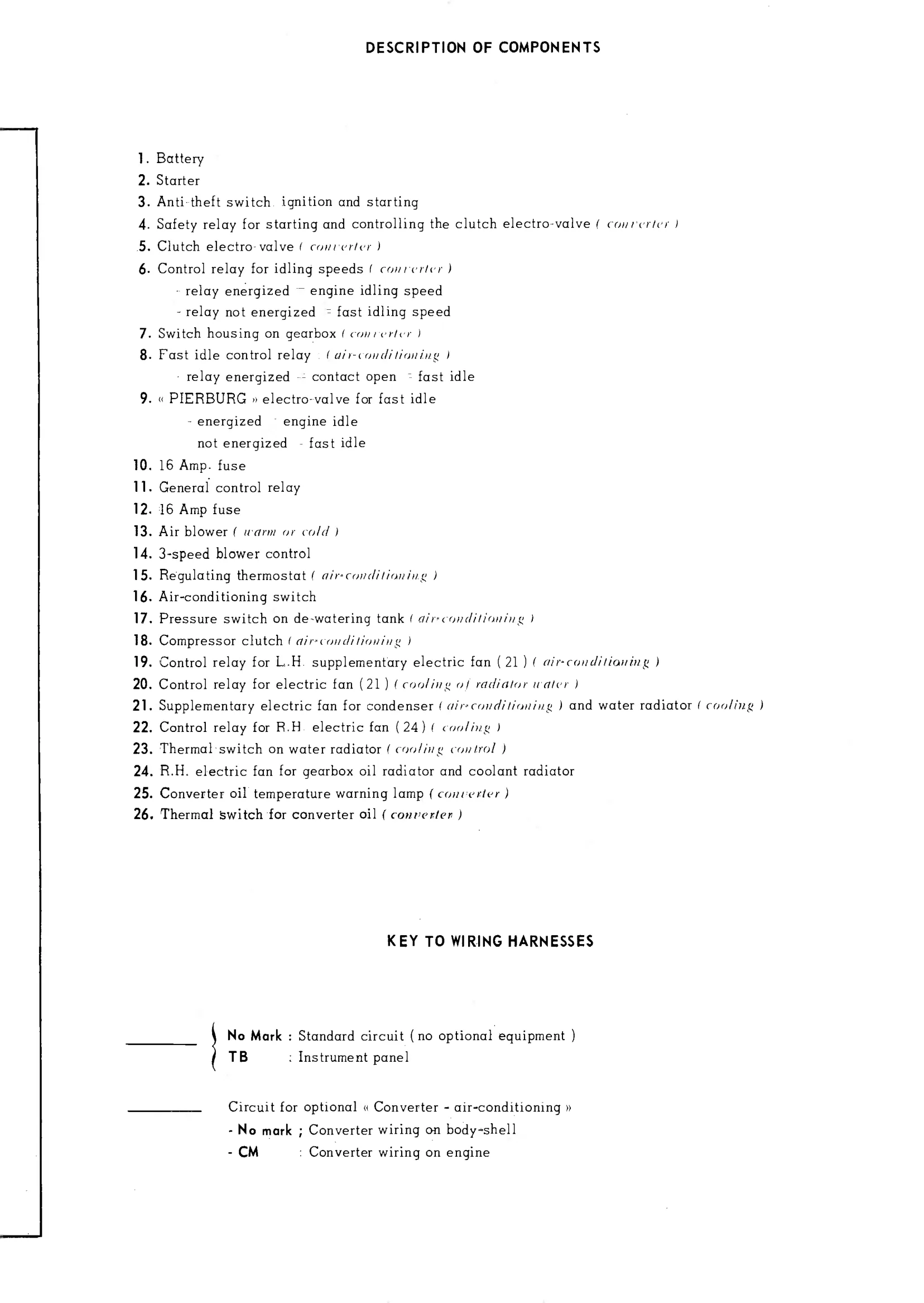

1. Battery 2. Starter 3. Anti-theft switch. ignition and starting 4. Safety relay for starting and controlling the clutch electro-valve ( } 5. Clutch electro: valve ( ) 6. Control relay for idling speeds ( ) ~ relay energized ~ engine idling speed -relay not energized = fast idling speed 7. Switch housing on gearbox { ) 8. Fast idle control relay | ( a/r-conditioning J - relay energized -- contact open = fast idle 9. « PIERBURG » electro-valve for fast idle - energized ~ engine idle not energized - fast idle 10. 16 Amp. fuse 11. General control relay 12. 16 Amp fuse 13.
Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
