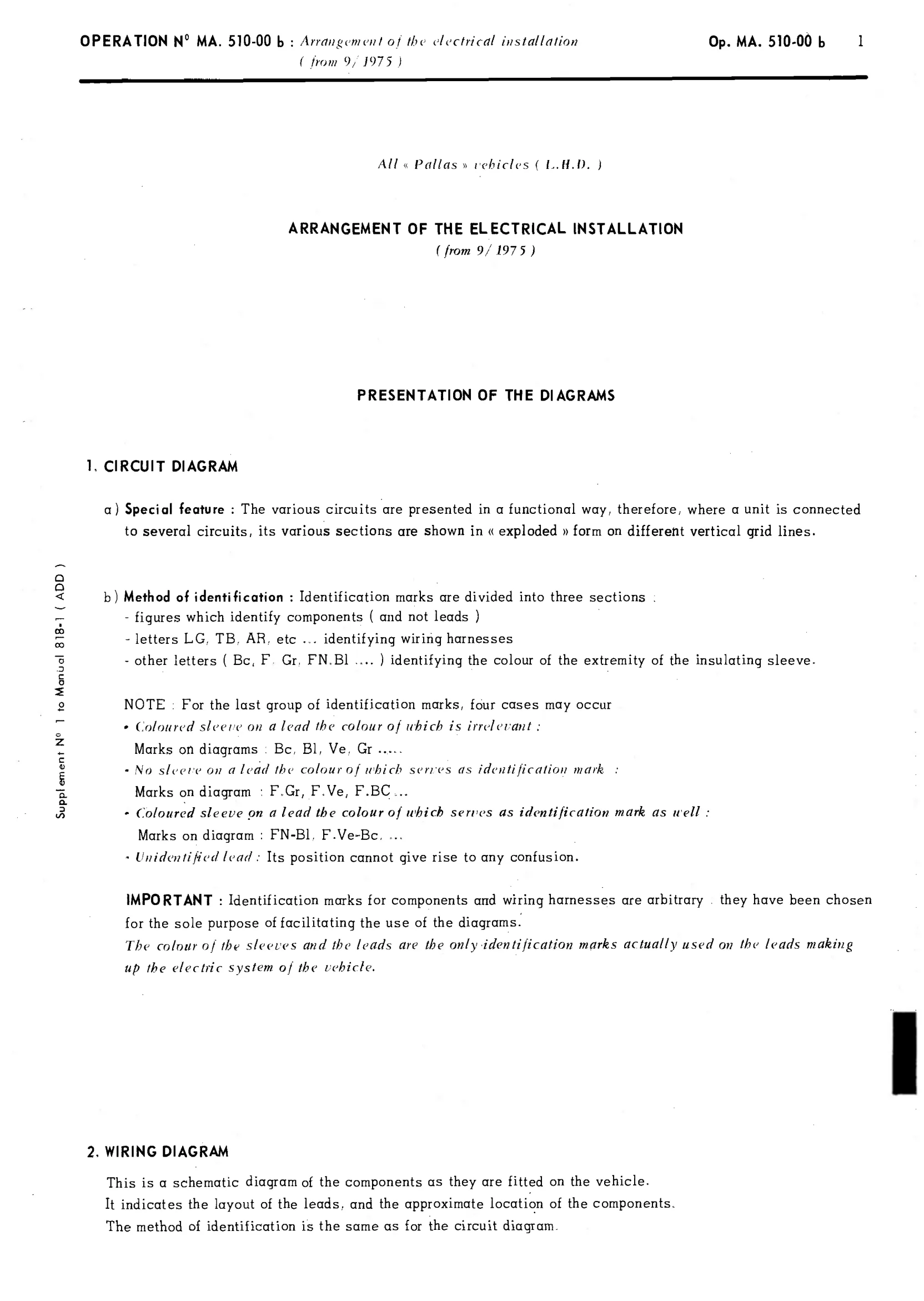

Supplement N° 1 to Manual 818-1 ( ADD ) All « Pallas » vehicles (L.H.D. ) ARRANGEMENT OF THE ELECTRICAL INSTALLATION ( from 9/ 1975 ) PRESENTATION OF THE DIAGRAMS 1, CIRCUIT DIAGRAM a) Special feature : The various circuits are presented in a functional way, therefore, where a unit is connected to several circuits, its various sections are shown in « exploded » form on different vertical grid lines.
