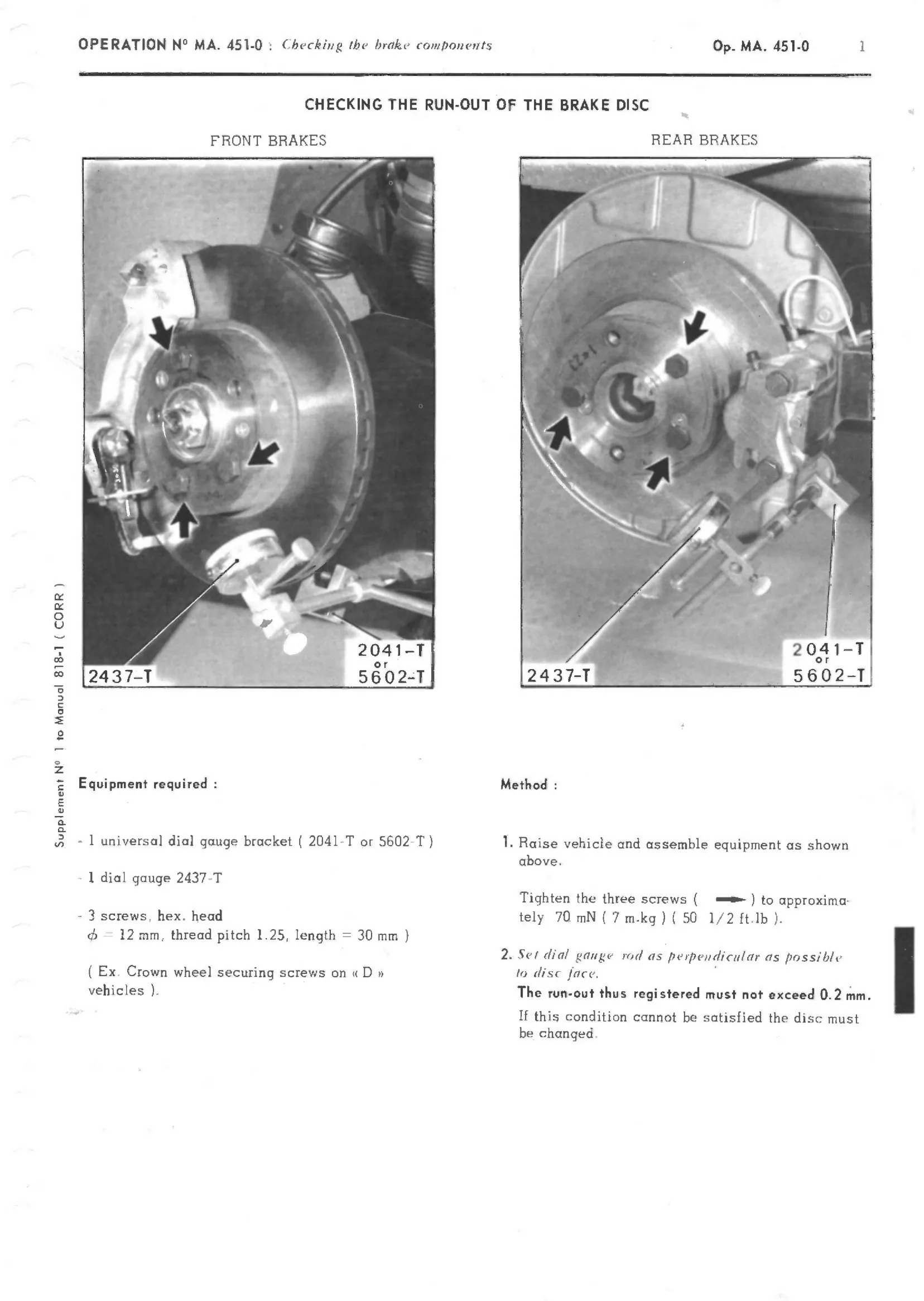

Supplement N° 1 to Manual 8181 ( CORR ) FRONT BRAKES Equipment required : - 1 universal dial gauge bracket ( 2041-T or 5602-T ) 1 dial gauge 2437-T - 3 screws, hex. head @ — 12mm, thread pitch 1.25, length = 30 mm } ( Ex. Crown wheel securing screws on « D » vehicles ). REAR BRAKES Method : 1. Raise vehicle and assemble equipment as shown above. Tighten the three screws (| === ) to 70 mN (7 m-kg) (50 1/2 ft-lb ).
Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
