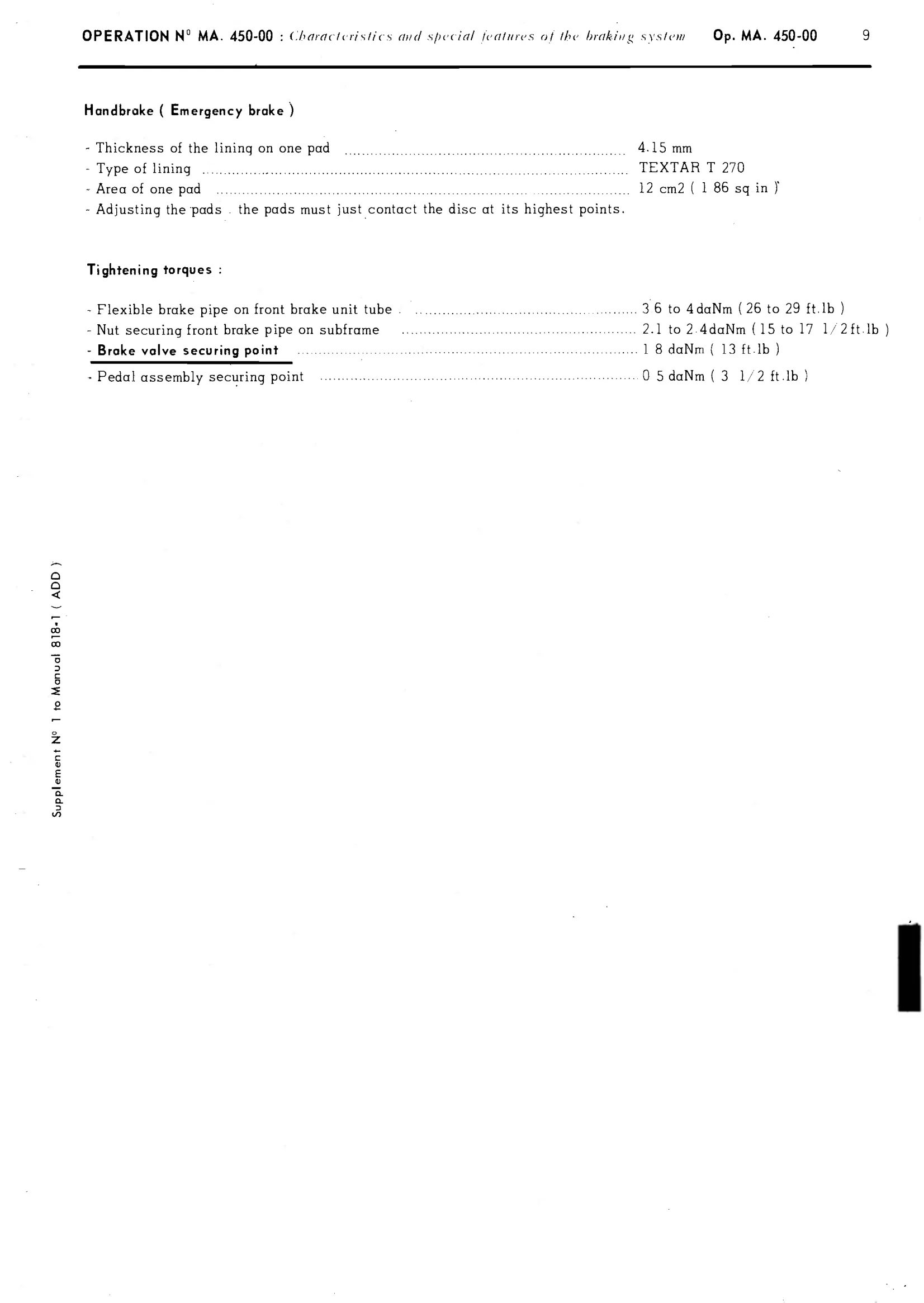

Brakes, page 281 of 389 — CX Repair Manual — Characteristics, Adjustments, Checks
Page ↔ Forum
Start a discussion
Find related SP-6
818 · p.281
EXTRACTED TEXT — FOR REFERENCE ONLY

Supplement N° 1 to Manual 818-1 ( ADD ) - Thickness of the lining on one pad - Type of lining 20 - Area of one pad - Adjusting the pads . the pads must just contact the disc at its highest points. Tightening torques : ~ Flexible brake pipe on front brake unit tube - Nut securing front brake pipe on - Brake valve securing point - Pedal assembly securing point 4.15 mm TEXTAR T 270 12 cm2 ( 1 86 sq in } . 36 to 4daNm (26 to 29 ) 2.1 to 2.4daNm (15 to 17 ) .. 1 8 daNm { 13 ft.Ib ) 0 5daNm (3 1/2

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
