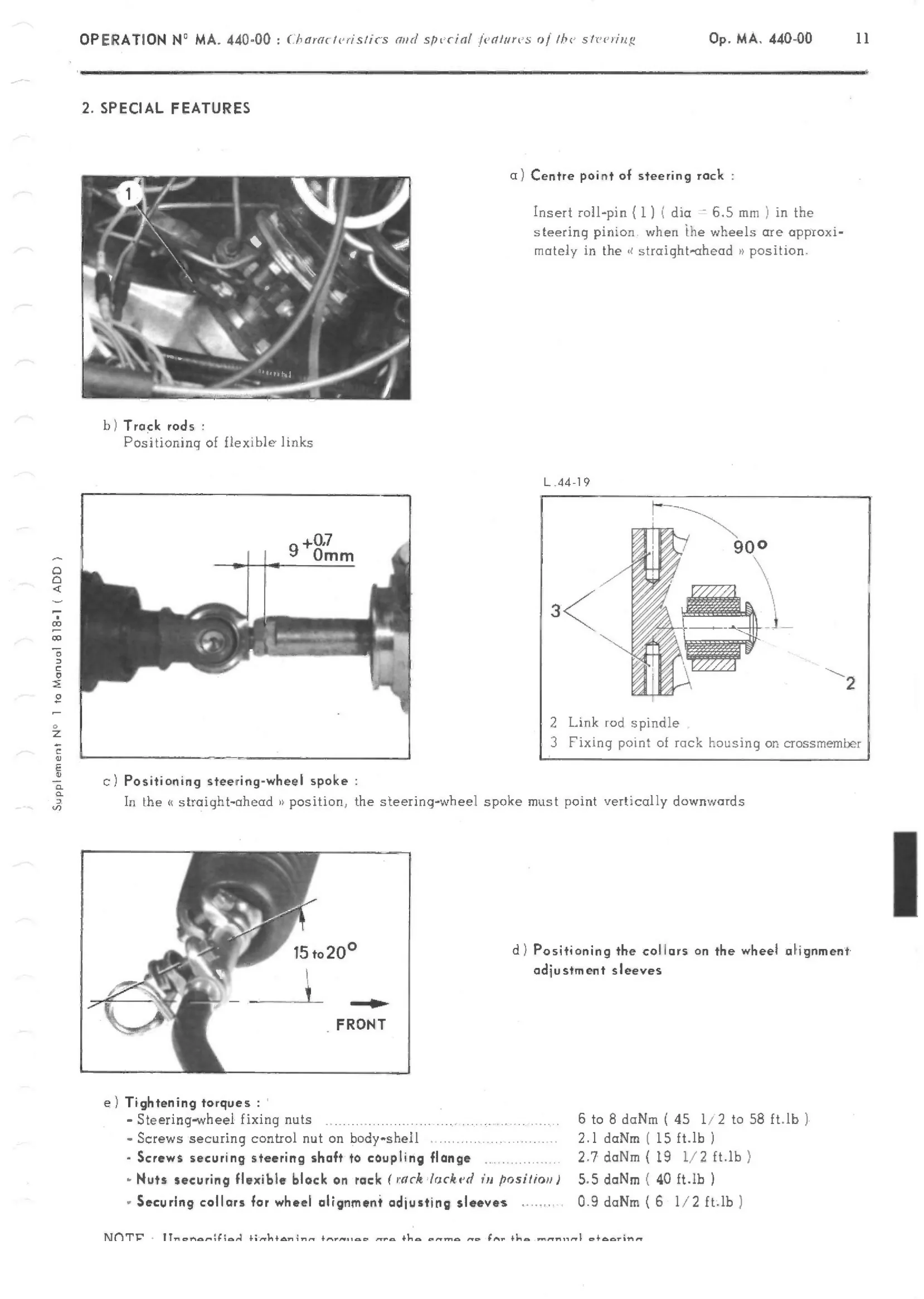

Supplement N° 1 to Manual 818-1 ( ADD } a) Centre point of steering rack : Insert roll-pin {1) { = 6.5 mm ) in the steering pinion. when the wheels are in the « straight-ahead » position. b) Track rods : Positioning of flexible links L.44-19 2 Link red spindle 3 Fixing point of rack housing on c) Positioning steering-wheel spoke : In the « straight-ahead » position, the steering-wheel spoke must point vertically downwards
