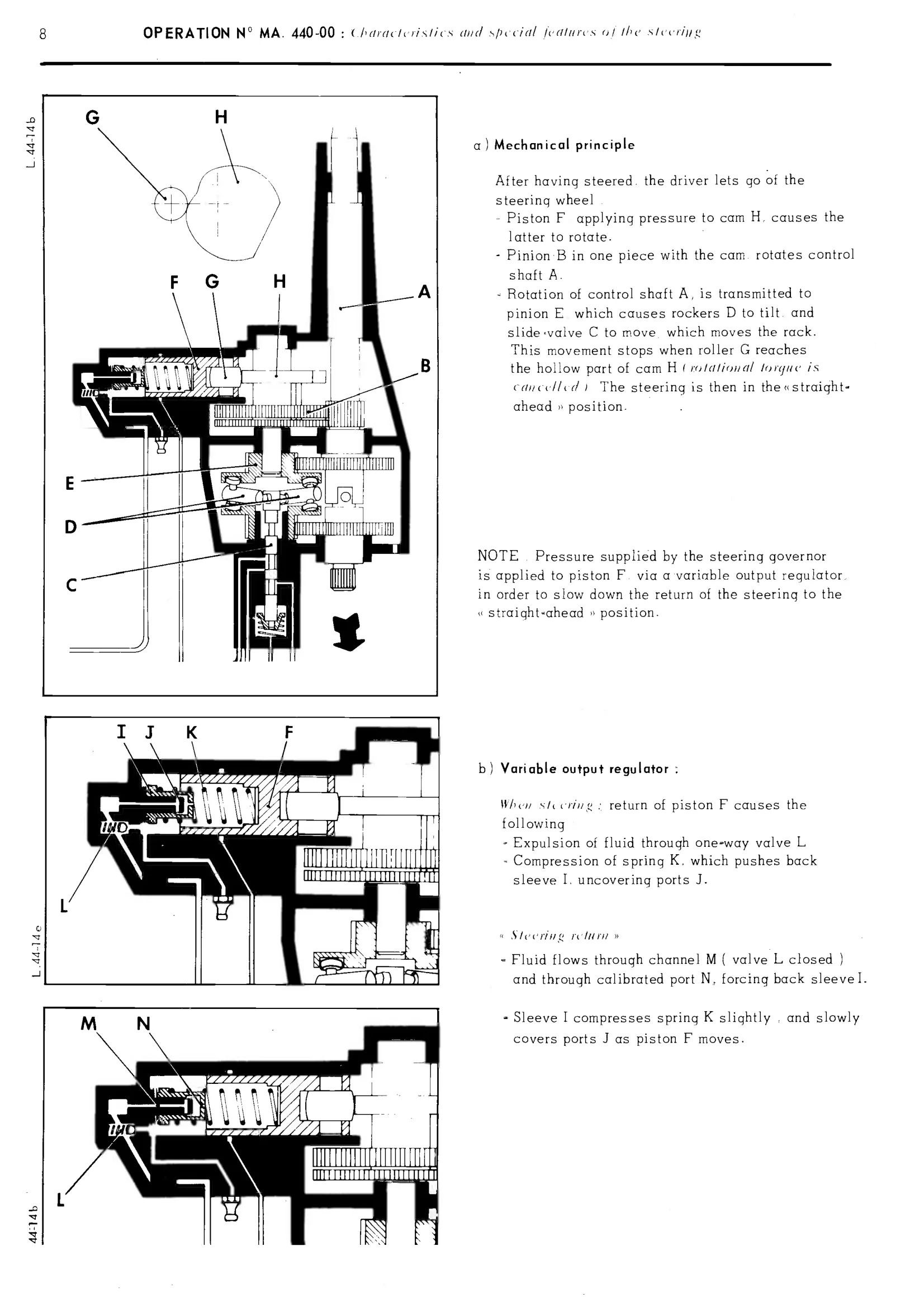

L. 44-1, L.44-l4e A146 I a) Mechanical principle After having steered. the driver lets go of the steering wheel - Piston F applying pressure to cam H. causes the latter to rotate. - Pinion B in one piece with the cam. rotates control shaft A.
