SECTION OVERVIEWSteering

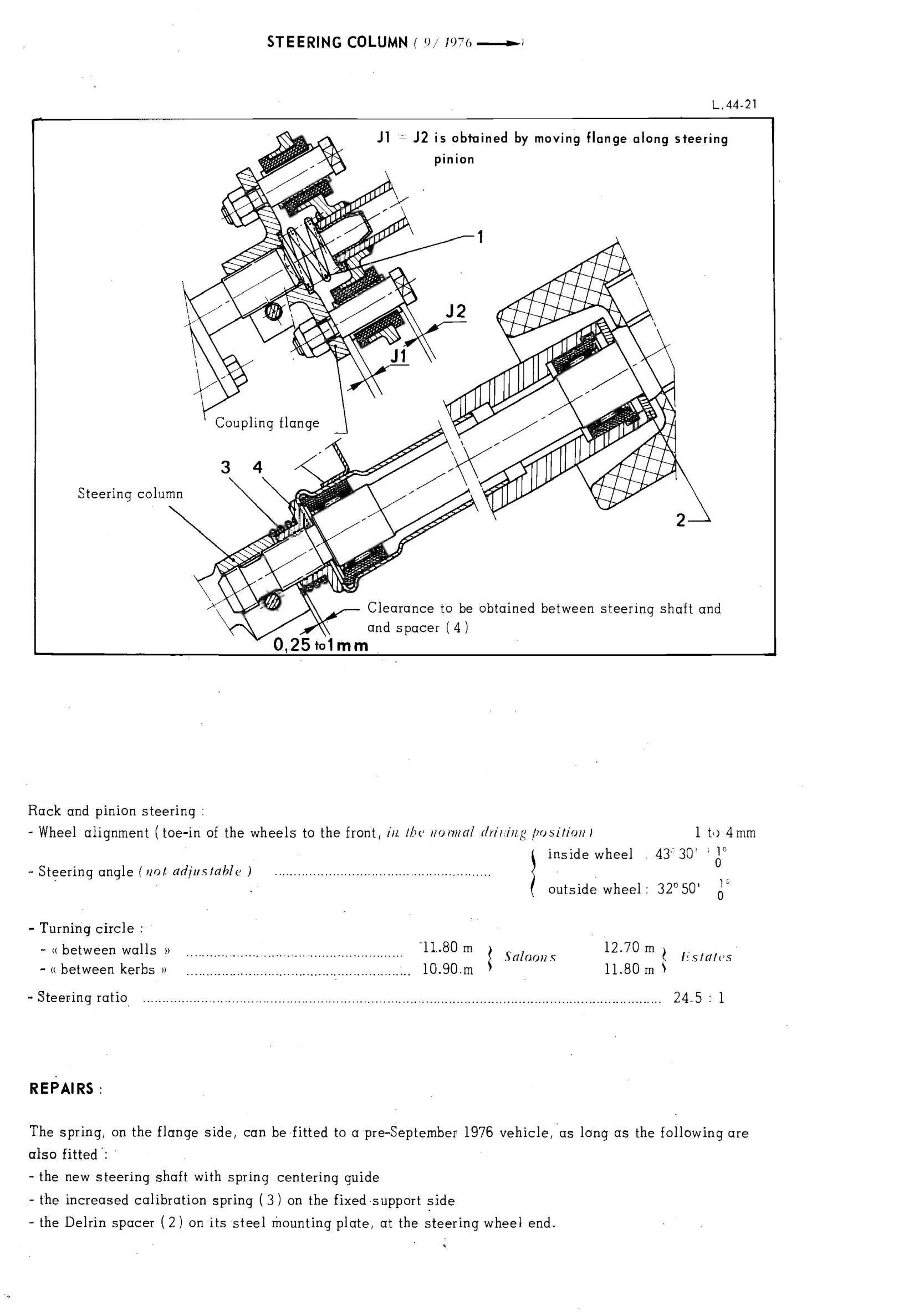

Steering, page 262 of 389 — CX Repair Manual — Characteristics, Adjustments, Checks
Page ↔ Forum
Start a discussion
Find related SP-6
818 · p.262
EXTRACTED TEXT — FOR REFERENCE ONLY

31 = J2 1s obtained by moving flange along steering Pinion Steering column Clearance to be obtained between steering shaft and and spacer (4) 0,25 Rack and pinion steering : - Wheel alignment (toe-in of the wheels to the front, ia the normal driving position) 1 to 4mm inside wheel . 43°30' ' , - Steering angle (wot adjustable ) ; : outside wheel: 32°50' b - Turning circle :

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
