SECTION OVERVIEWAdjusting heights

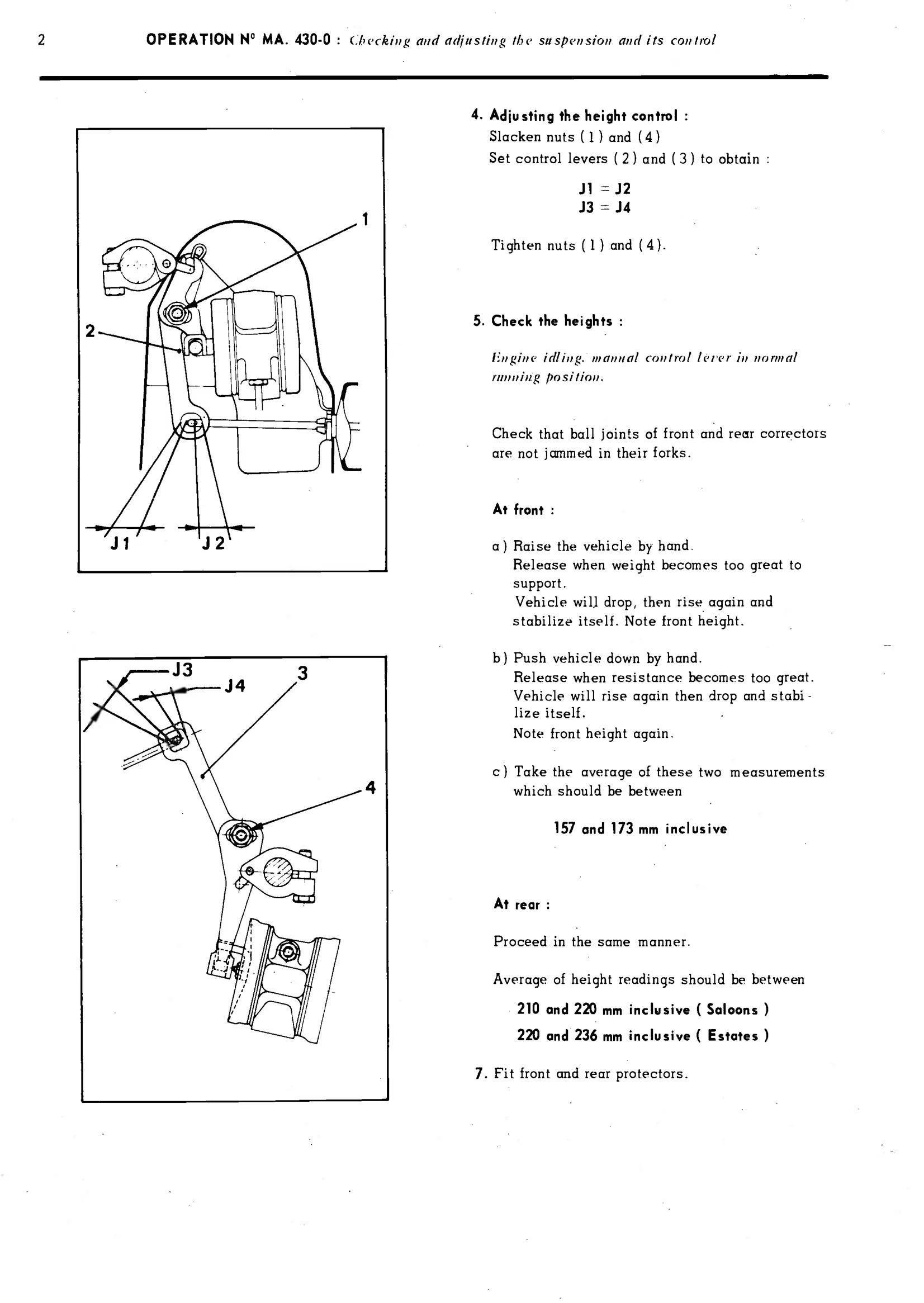

Adjusting heights, page 258 of 389 — CX Repair Manual — Characteristics, Adjustments, Checks
Page ↔ Forum
Start a discussion
Find related SP-6
818 · p.258
EXTRACTED TEXT — FOR REFERENCE ONLY

Slacken nuts (1) and (4} Set control levers (2) and (3) to obtain : J1=J2 J3 = 54 Tighten nuts (1) and (4). 5. Check the heights : Engine idling. manual control lever in normal running position. Check that ball joints of front and rear correctors are not jammed in their forks. At front : a) Raise the vehicle by hand. Release when weight becomes too great to support. Vehicle drop, then again and stabilize itself. Note front height.

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
