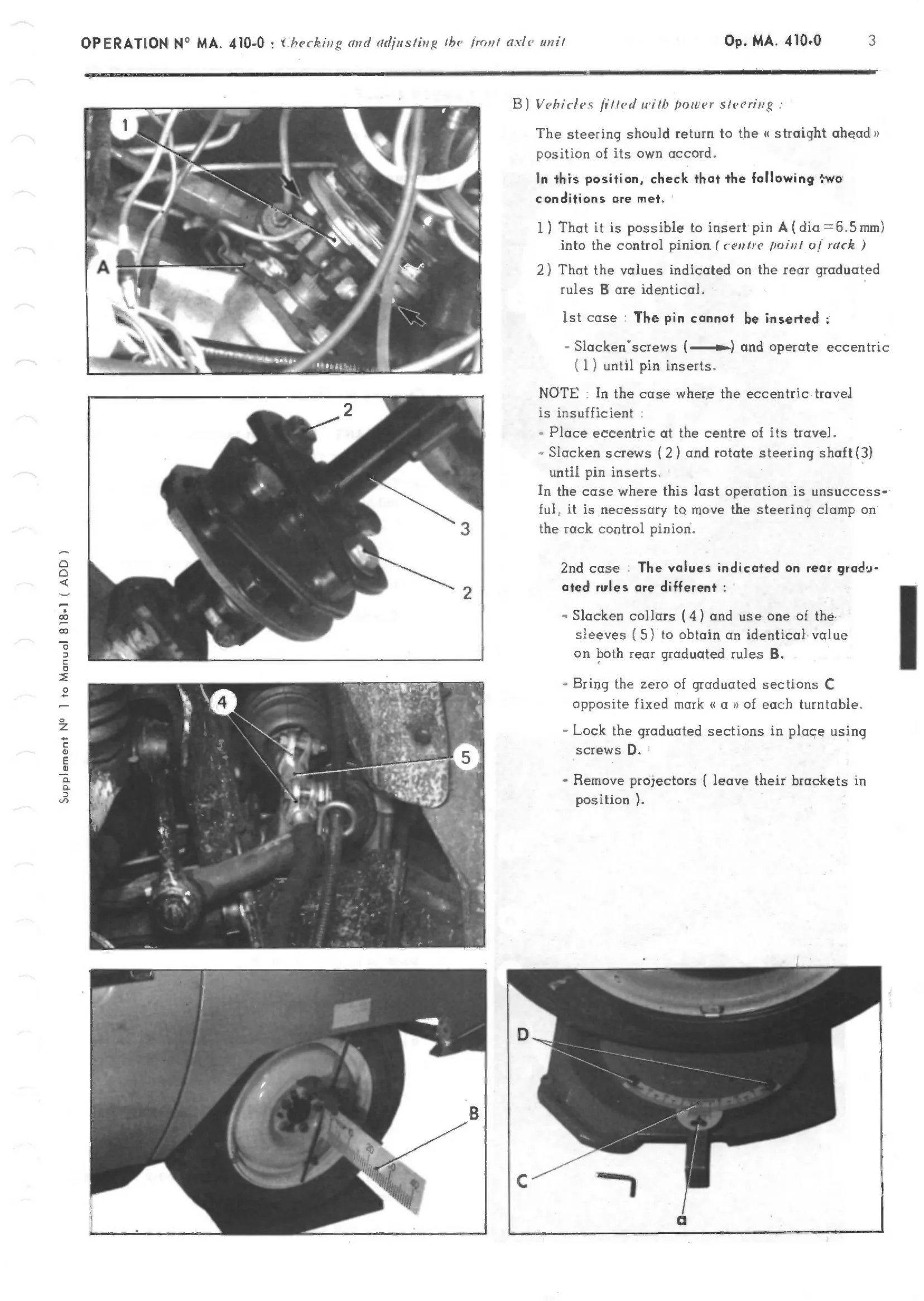

Axles / Front axle, page 238 of 389 — CX Repair Manual — Characteristics, Adjustments, Checks
Page ↔ Forum
Start a discussion
Find related SP-6
818 · p.238
EXTRACTED TEXT — FOR REFERENCE ONLY

Supplement N° ] to Manual 8181 ( ADD ) steering should return to the « Straiqit ahead ) position of its own accord. In this position, check that the following two conditions are met. 1) That it is possible to insert pin A =6.5 mm) into the control pinion ( point of rack ) 2) That the values indicated on the rear graduated B are identical. case : The pin cannot be inserted : - Slacken’screws (——«) and operate eccentric (1) until pin inserts.

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
