EXTRACTED TEXT — FOR REFERENCE ONLY

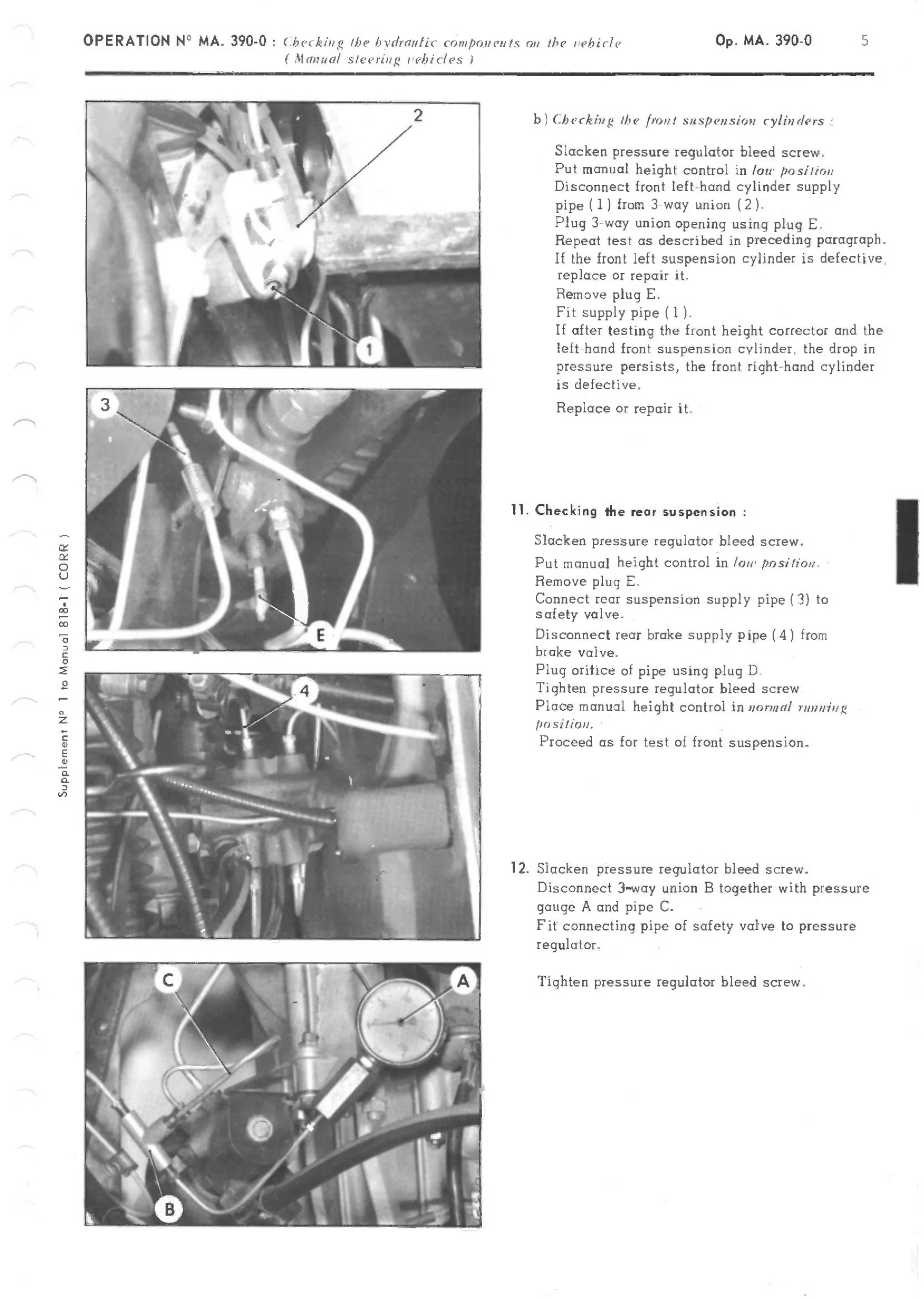

Supplement N° 1 to Manual 818-1 ( CORR } Slacken pressure regulator bleed screw. Put manual height control in /ow position Disconnect front left-hand cylinder supply pipe (1) from 3-way union (2). Plug 3-way union opening using plug E. Repeat test as described in preceding paragraph. If the front left suspension cylinder is defective, replace or repair it. Remove plug E. Fit supply pipe (1).
Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
