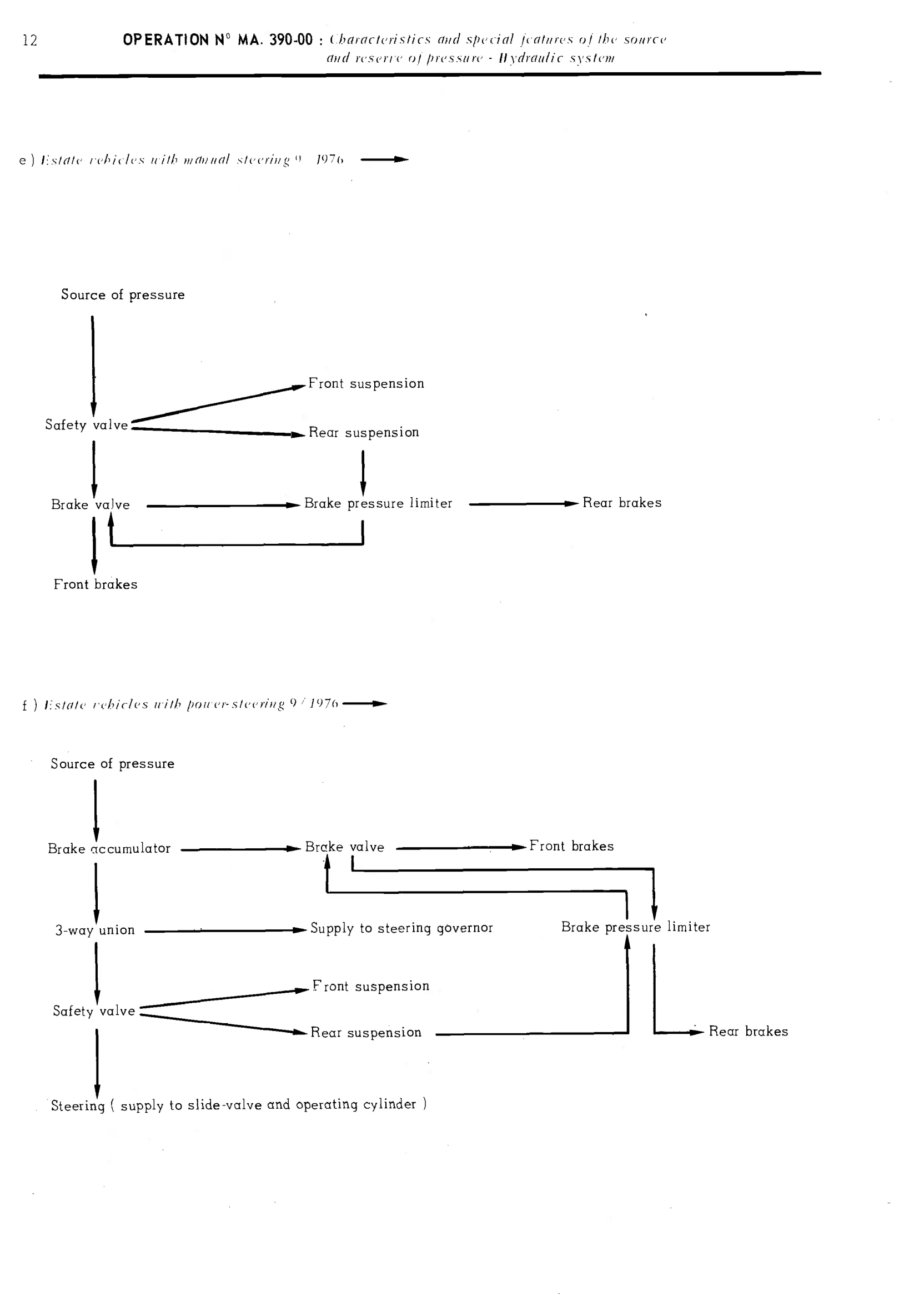

e) Estate vehicles with manual steering 8 1970 Source of pressure _ Suspension oe Rear suspension Safety valve Brake Brake pressure limiter —————> Rear brakes Front brakes £) Estate vehicles with power steering 971976 —t- Source of pressure Brake accumulator ———»_— Brake valve —————————» Front brakes 3-way union ———______» Supply to steering governor Brake pressure limiter _ suspension Safety valve oe er suspension > Rear brakes Steering ( supply to slide-valve and operating cylinder )
Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
