EXTRACTED TEXT — FOR REFERENCE ONLY

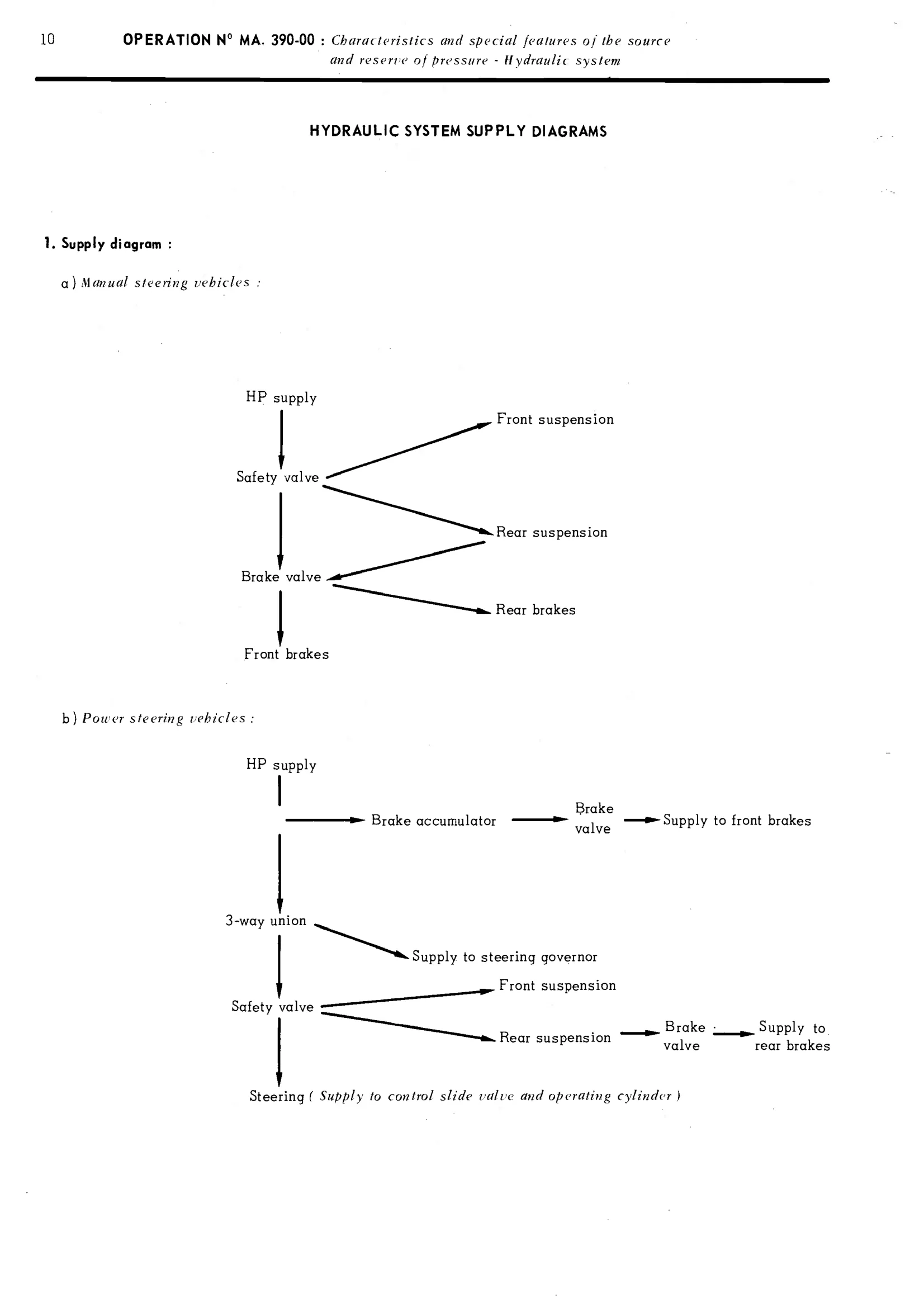

SPP MAAVRIN YVIVI EM kh | MAW RAMO 1. Supply diagram : a) Manual steering : HP supply Front suspension Safety valve Brake valve | oo Rear brakes Front brakes b) Power steering : HP supply Brake —— Brake accumulator valve —~ Supply to front brakes 3-way union x to steering governor a suspension Safety valve = | suspension ——" Brake __. Supply to valve rear brakes Steering ( Supply to control slide valve and operating cylinder )
Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
