EXTRACTED TEXT — FOR REFERENCE ONLY

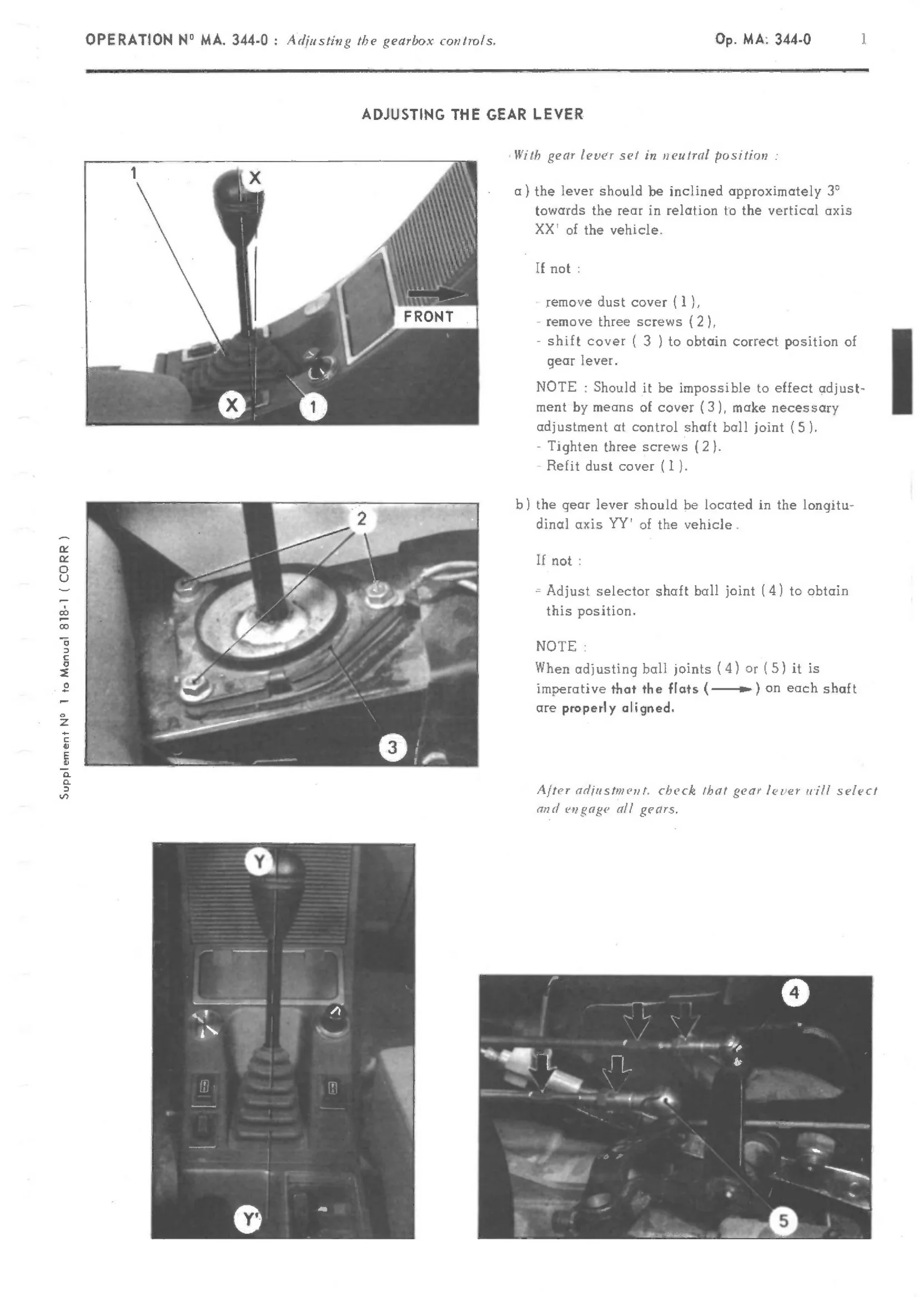

Supplement N° 1 to Manual 818-1 ( CORR ) With gear lever set in neutral position : a) the lever should be inclined approximately 3° towards the rear in relation to the vertical axis XX' of the vehicle. If not : remove dust cover {1}, remove three screws (2), - shift cover ( 3 ) to obtain correct position of gear lever.
Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
