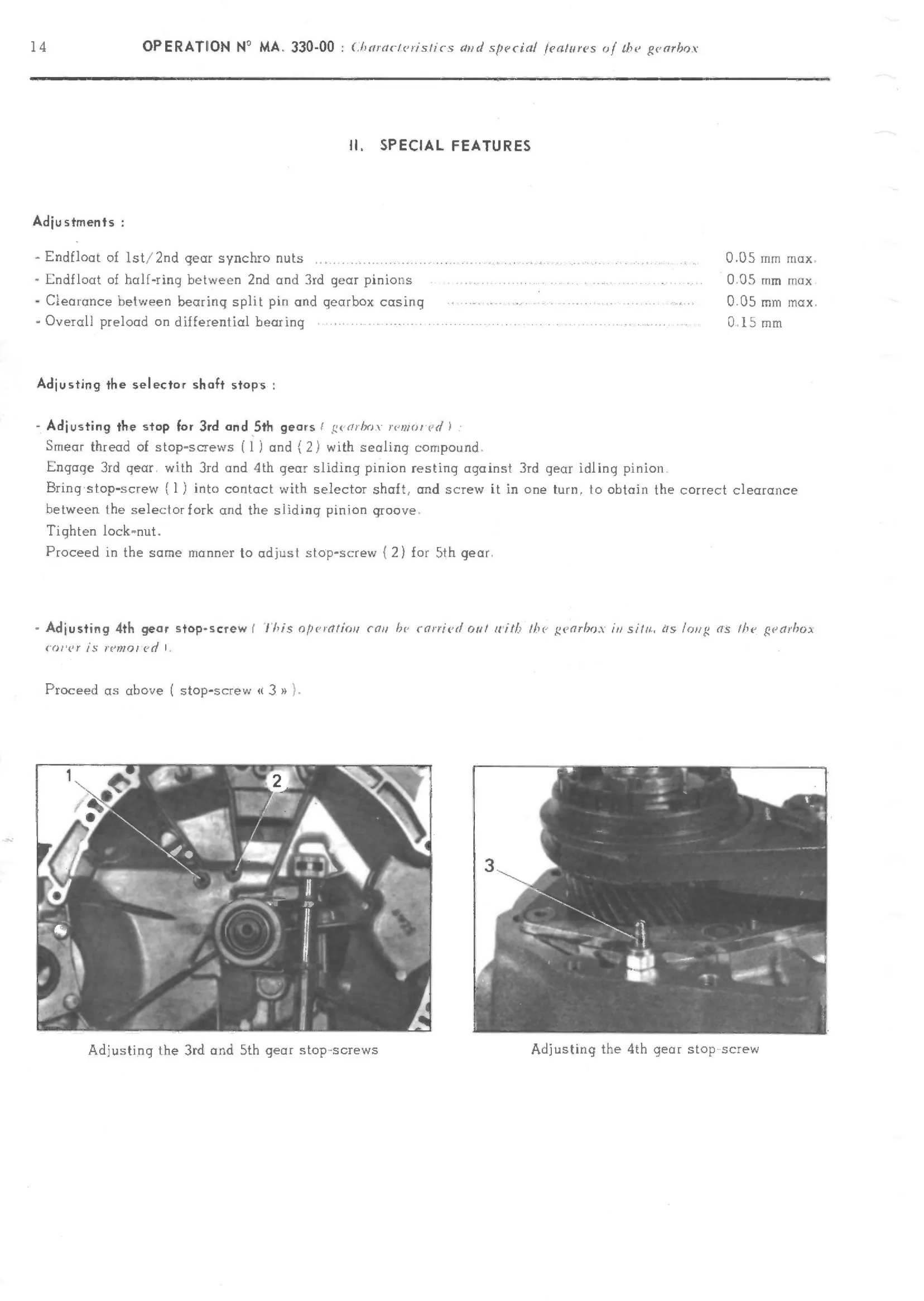

5-speed, page 203 of 389 — CX Repair Manual — Characteristics, Adjustments, Checks
Page ↔ Forum
Start a discussion
Find related SP-6
818 · p.203
EXTRACTED TEXT — FOR REFERENCE ONLY

{l, SPECIAL FEATURES Adjustments : - Endfloat of Ist/2nd gear synchro nuts ae 0.05 mm max. - Endfloat of half-ring between 2nd and 3rd gear pinions 0.05 mm max - Clearance between bearing split pin and gearbox casing 0.05 mm max. - Overall on differential bearing 0.15 mm Adjusting the selector shaft stops :

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
