EXTRACTED TEXT — FOR REFERENCE ONLY

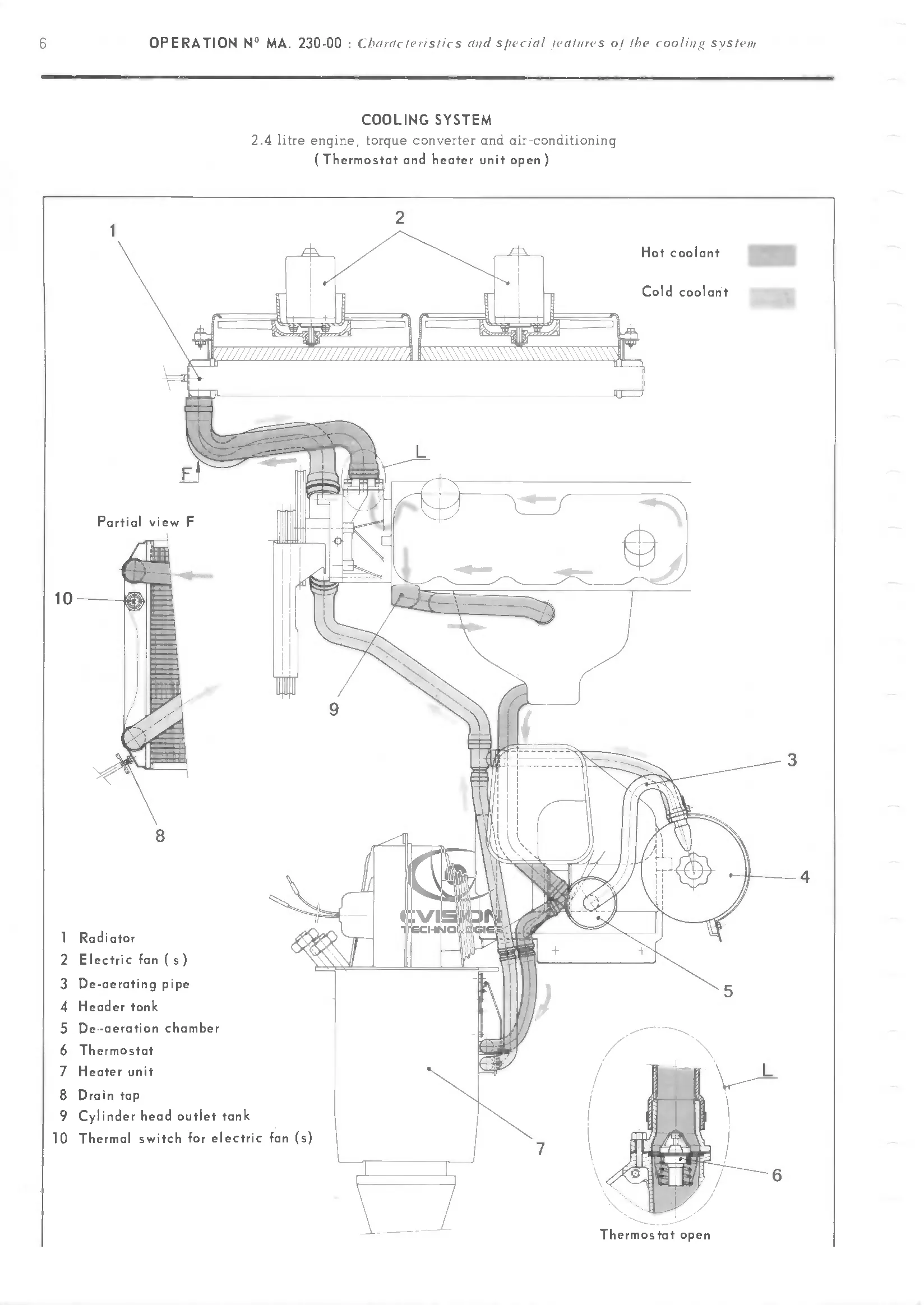

2.4 litre engine, torque converter and air-conditioning ( Thermostat and heater unit open) —AdX Hot coolant Pn |] Cold coolant ‘ " Radiator Electric fan (s) De-aerating pipe Header De-aeration chamber Thermostat Heater unit Drain tap Cylinder head outlet tank Thermal switch for electric fan (s) oO ONO Om Ww Nh oS aa Thermostat open
Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
