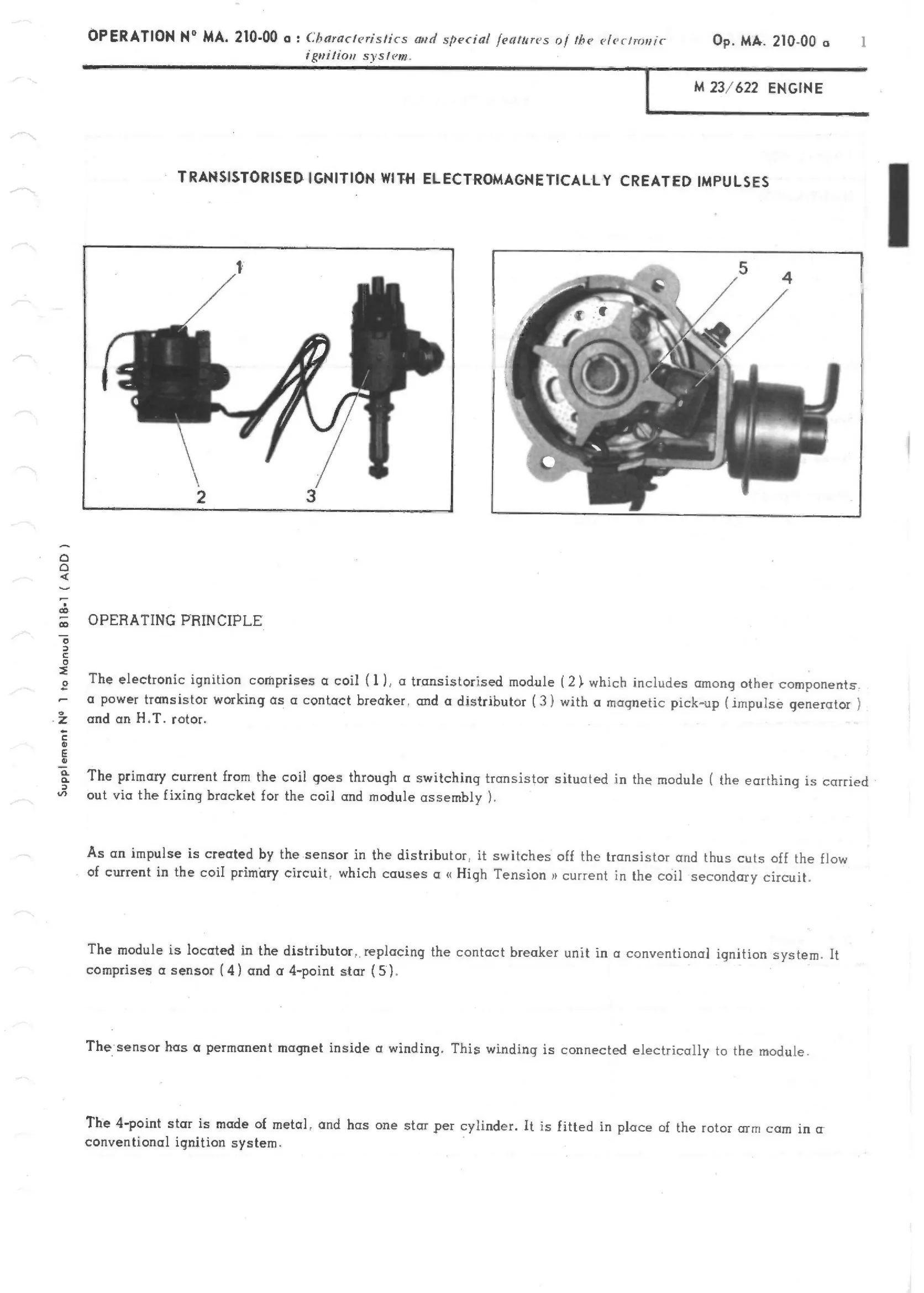

Supplement N° 1 to Manual 818-1 ( ADD ) TRANSISTORISED IGNITION. WITH ELECTROMAGNETICALLY CREATED IMPULSES OPERATING PRINCIPLE The electronic ignition comprises a coil (1), a module (2} which includes among other components @ power transistor working as a contact breaker, and a distributor (3) with a magnetic pick-up (impulse generator ) and an H.T. rotor.

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
