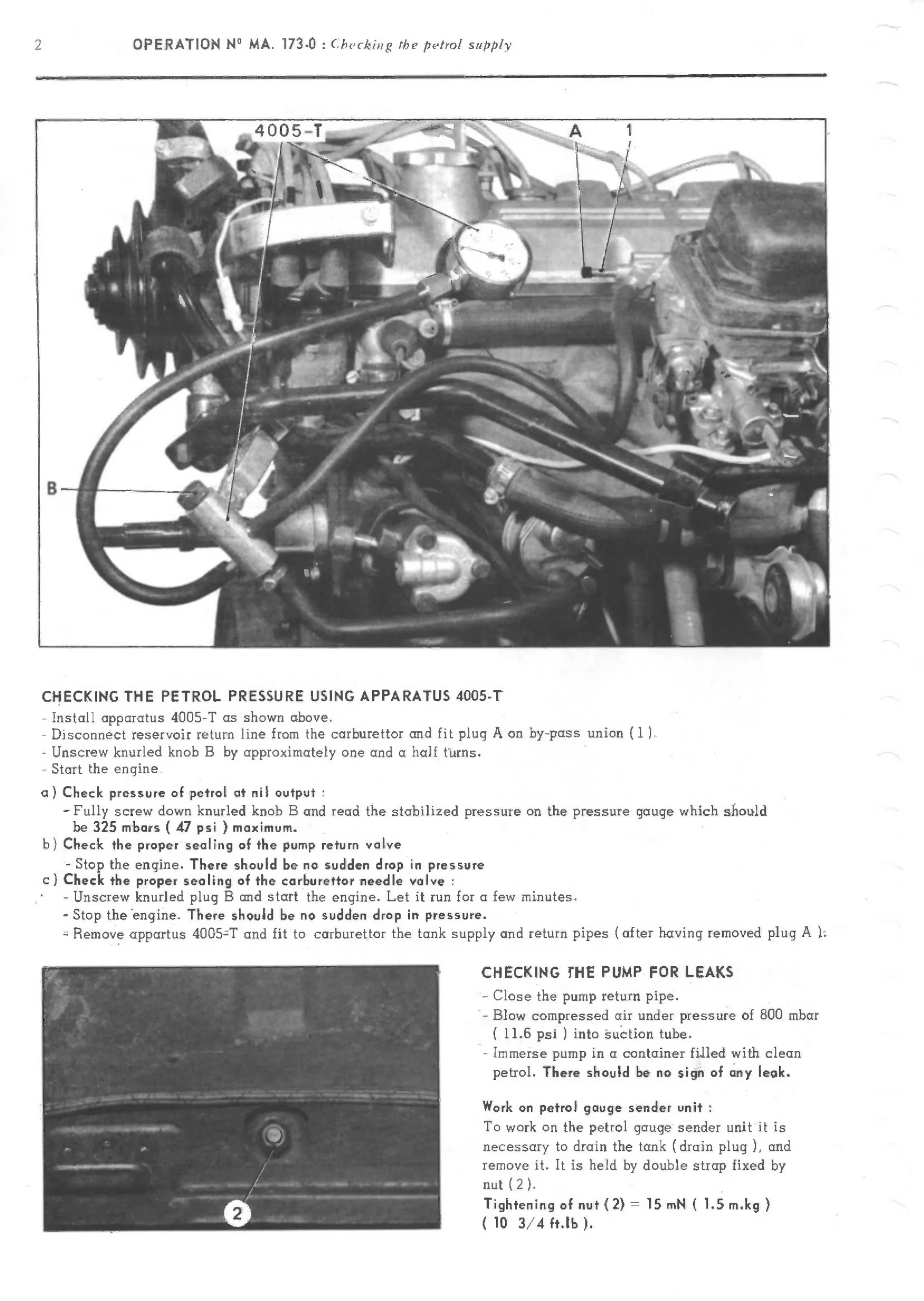

Fuel pump (carb.), page 151 of 389 — CX Repair Manual — Characteristics, Adjustments, Checks
Page ↔ Forum
Start a discussion
Find related SP-6
818 · p.151
EXTRACTED TEXT — FOR REFERENCE ONLY

CHECKING THE PETROL PRESSURE USING APPARATUS 4005-T Install apparatus 4005-T as shown above. - Disconnect reservoir return line from the and fit plug A on by-pass union (1). - Unscrew knurled knob B by approximately one and a half turns. Start the engine a) Check pressure of petrol at ni! output : - Fully screw down knurled knob B and read the stabilized pressure on the pressure gauge which should be 325 ( 47 psi ) maximum.

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
