SECTION OVERVIEWCheck and adjust injection

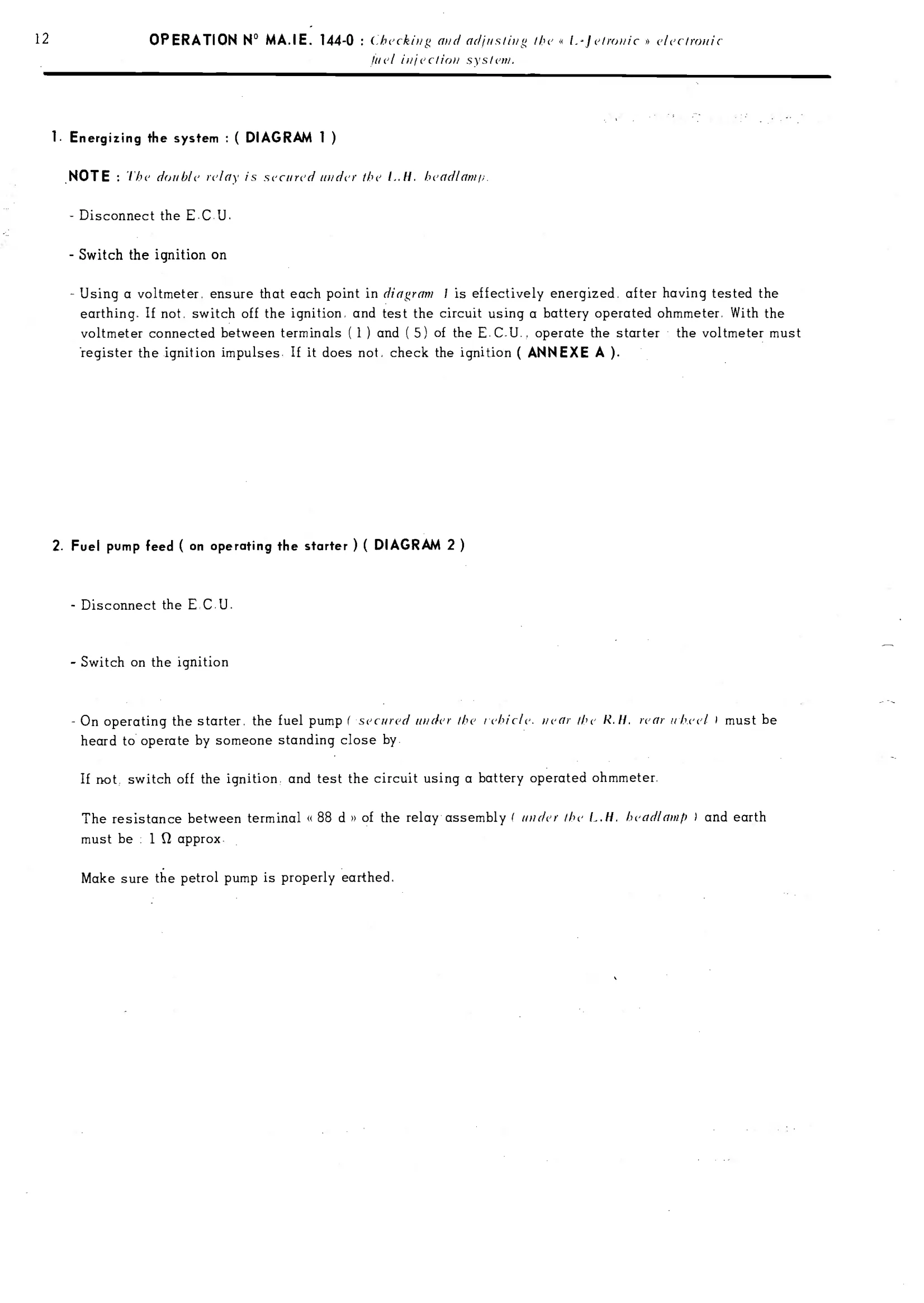

Check and adjust injection, page 132 of 389 — CX Repair Manual — Characteristics, Adjustments, Checks
Page ↔ Forum
Start a discussion
Find related SP-6
818 · p.132
EXTRACTED TEXT — FOR REFERENCE ONLY

|. Energizing the system : ( DIAGRAM I ) NOTE : The double relay is secured under the LH. headlamp - Disconnect the E.C.U. - Switch the ignition on - Using a voltmeter. ensure that each point in diagram | is effectively energized. after having tested the earthing. If not. switch off the ignition. and test the circuit using a battery operated ohmmeter. With the

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
