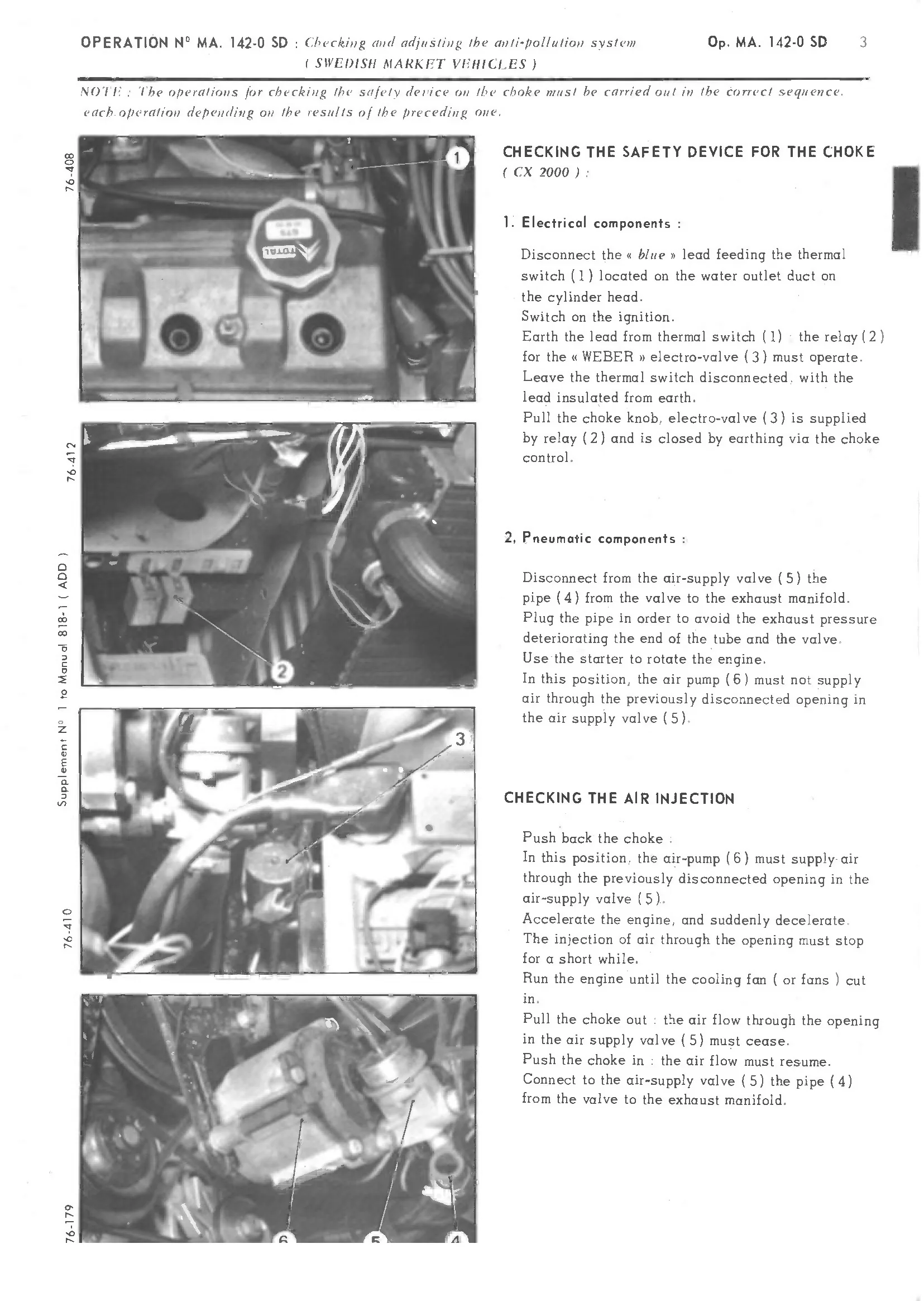

CHECKING THE SAFETY DEVICE FOR THE CHOKE { CX 2000): ]. Electrical components : Disconnect the « blue » lead feeding the thermal switch (1) located on the water outlet duct on the cylinder head. Switch on the ignition. Earth the lead from thermal switch (1) the relay (2) for the « WEBER » electro-valve (3) must operate. Leave the thermal switch disconnected. with the lead insulated from earth.

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
