SECTION OVERVIEWAnti-pollution for Swedish market

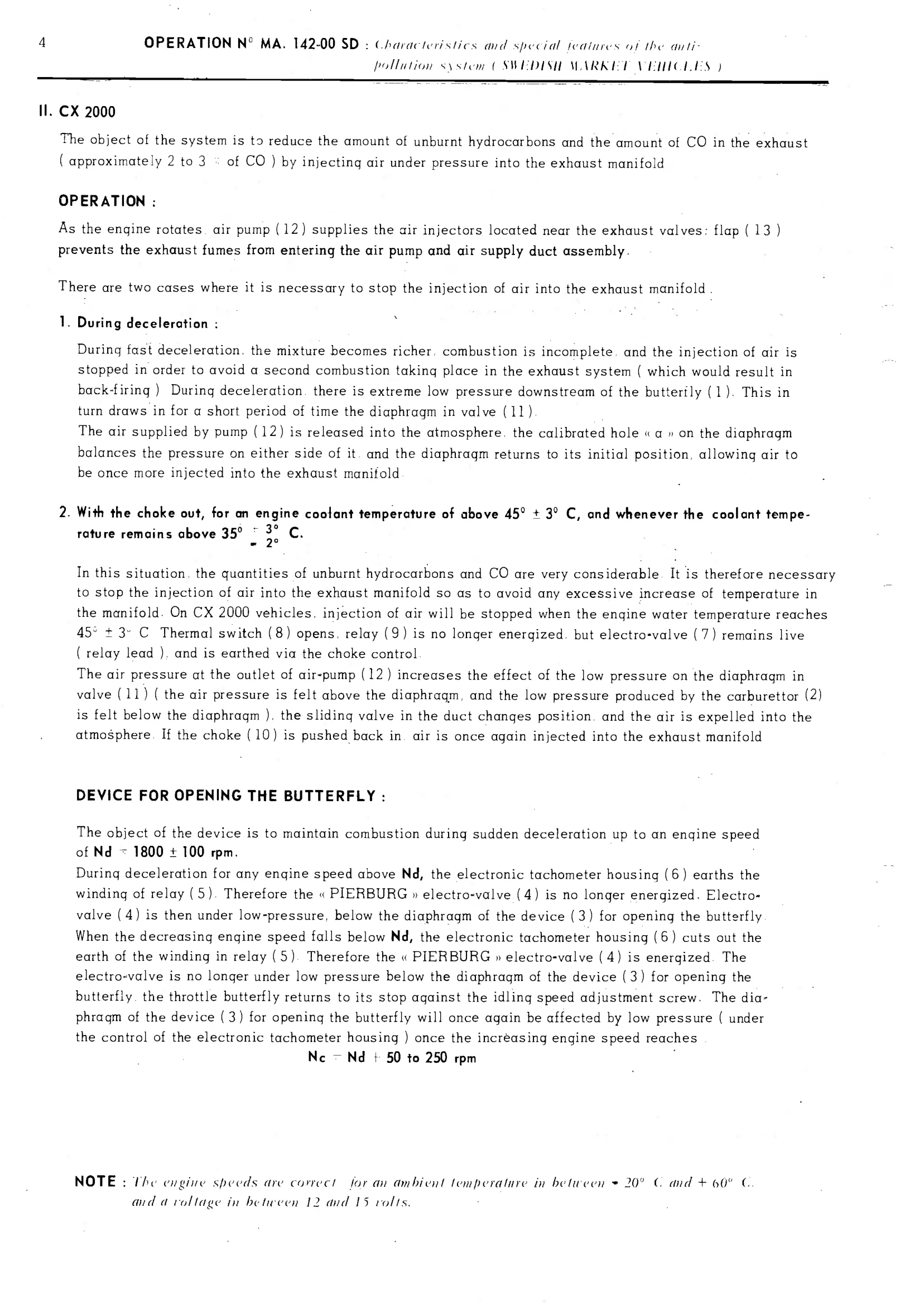

Anti-pollution for Swedish market, page 88 of 389 — CX Repair Manual — Characteristics, Adjustments, Checks
Page ↔ Forum
Start a discussion
Find related SP-6
818 · p.88
EXTRACTED TEXT — FOR REFERENCE ONLY

The object of the system is to reduce the amount of unburnt hydrocarbons and the amount of CO in the exhaust ( approximately 2 to 3: of CO ) by injecting air under pressure into the exhaust manifold OPERATION : As the engine rotates. air pump (12) supplies the air injectors located near the exhaust valves: flap (13 ) prevents the exhaust fumes from entering the air pump and air supply duct assembly.

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
