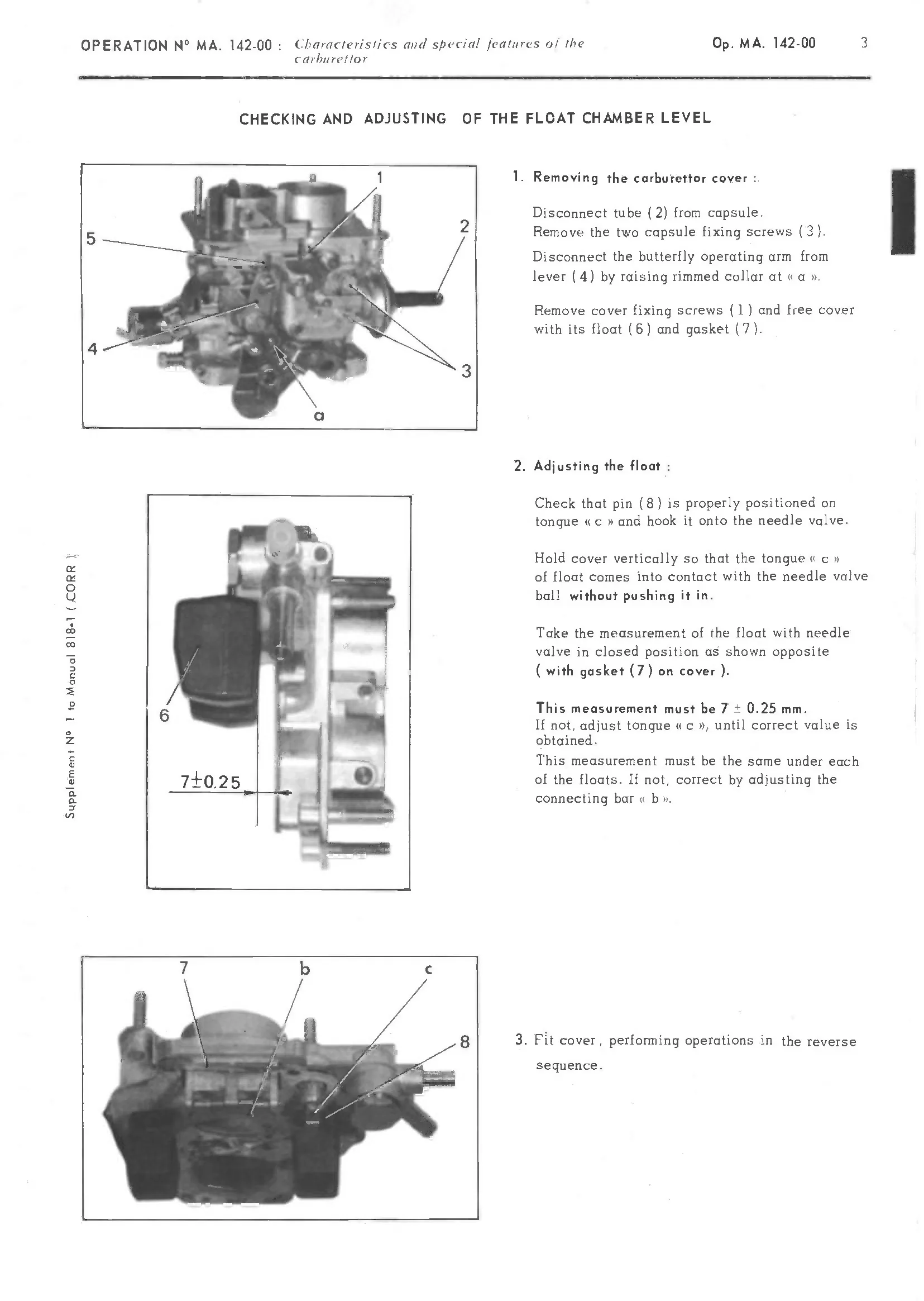

Supplement N° } to Manual 8181 (CORR | - Removing the cover : Disconnect tube { 2) from capsule. Remove the two capsule fixing screws (3). Disconnect the butterfly operating arm from lever (4) by raising rimmed collar at «a ». Remove cover fixing screws {1) and free cover with its float (6) and gasket (7). . Adjusting the float : Check that pin (8) is properly positioned on tongue «c » and hook it onto the needle valve.

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
