EXTRACTED TEXT — FOR REFERENCE ONLY

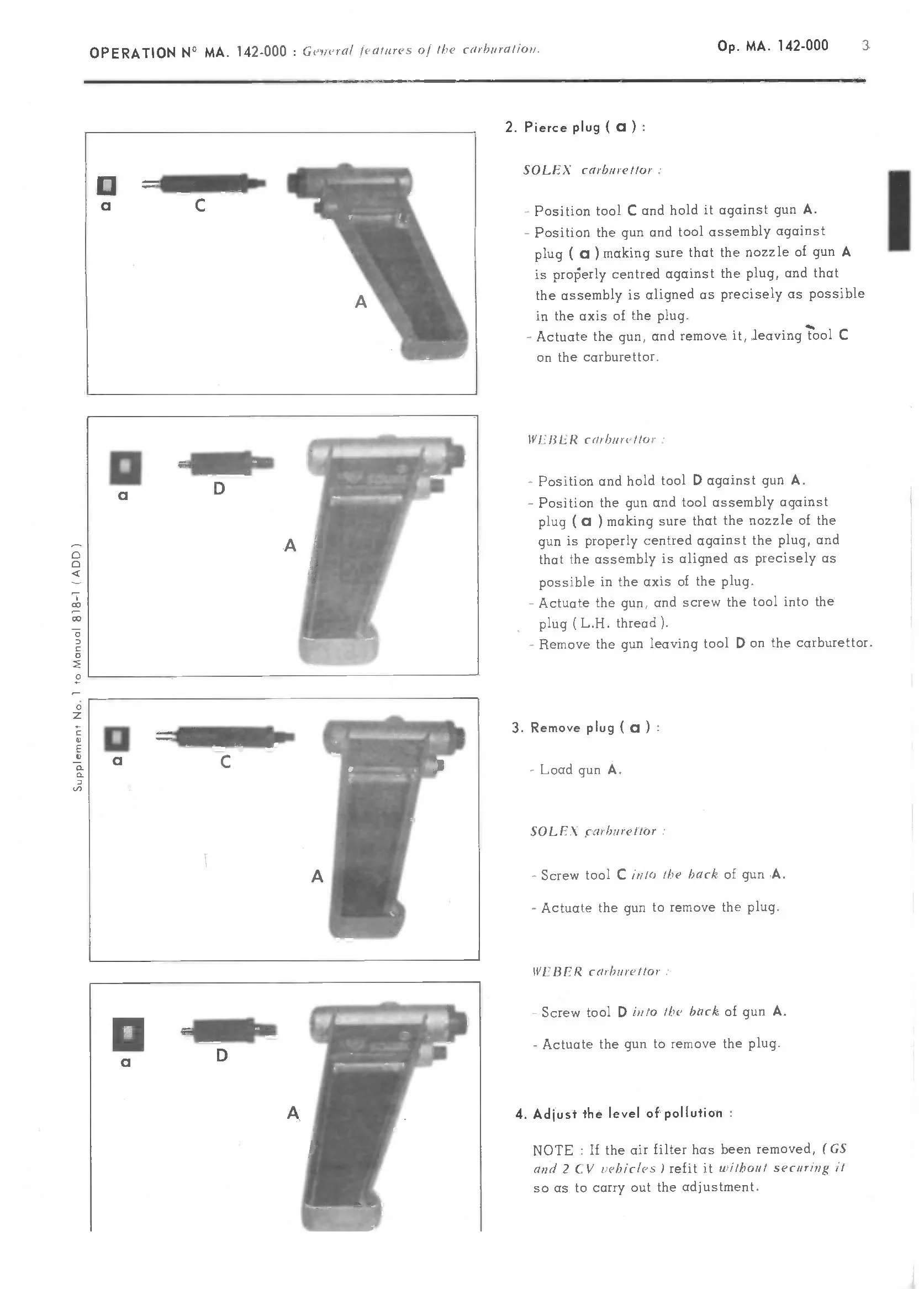

Supplement No. ] to Manual 818-1 (ADD) ae Ne Pees Sma SOLEX ; Position tool C and hold it against gun A. - Position the gun and tool assembly against plug (a) making sure that the nozzle of gun A is properly against the plug, and that the assembly is aligned as precisely as possible in the axis of the plug. - Actuate the gun, and remove it, leaving fool € on the WEBER :
Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
