Citroën Repair Manual
CX Vehicles, Volume I
N°818, February 1975
SECTION OVERVIEWDraining hydraulic system

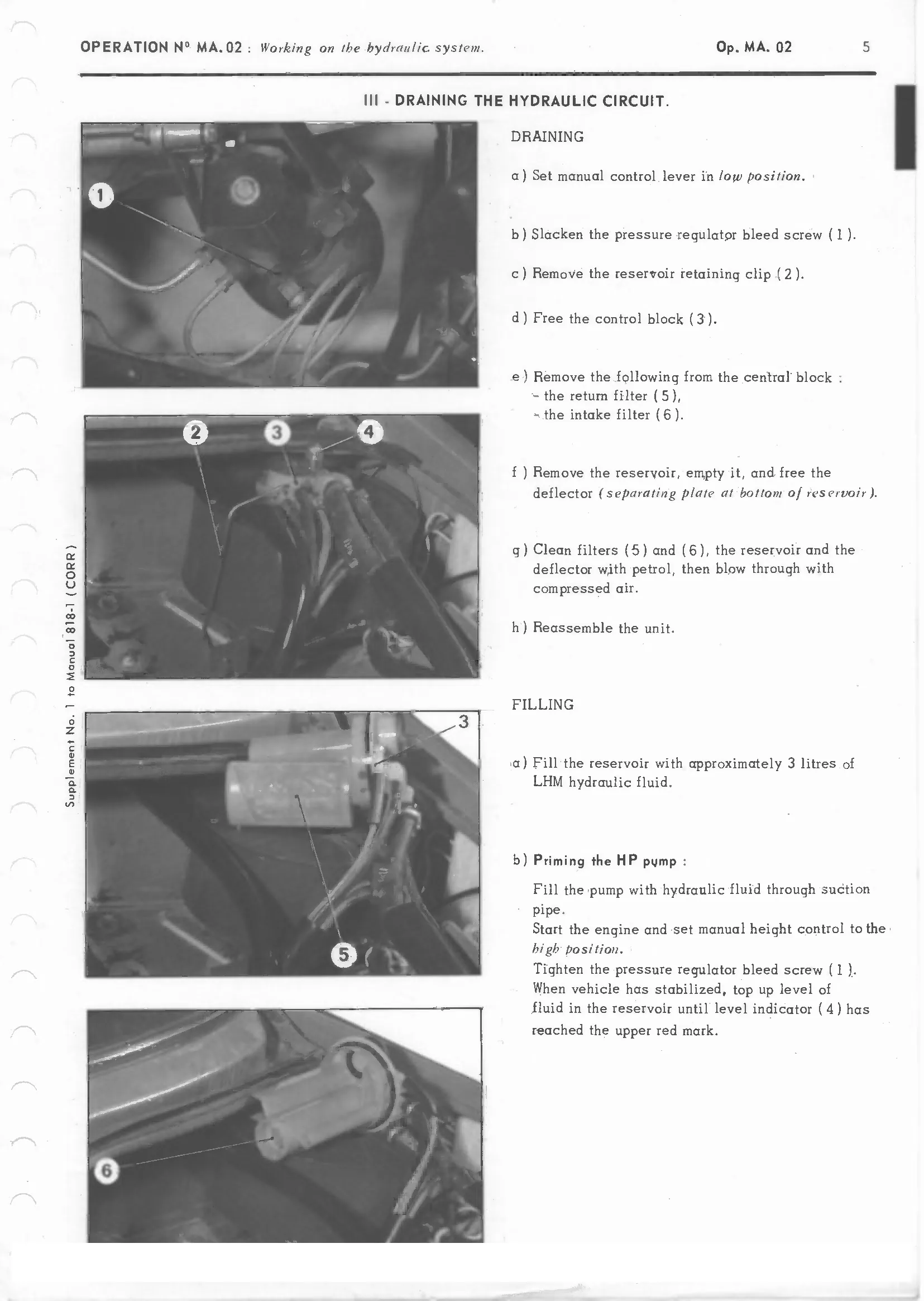

Draining hydraulic system, page 46 of 389 — CX Repair Manual — Characteristics, Adjustments, Checks
Page ↔ Forum
Start a discussion
Find related SP-6
818 · p.46
EXTRACTED TEXT — FOR REFERENCE ONLY

Supplement No. 1 to Manual 818-1 (CORR) DRAINING a) Set manual control lever in /ow position. b) Slacken the pressure regulator bleed screw (1). c) Remove the reservoir retaining clip (2). d) Free the block (3). e) Remove the following from the central block : ~ the return filter (5), «the intake filter (6). f ) Remove the reservoir, empty it, and free the deflector (separating plate at bottom of reservoir ).

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
