REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

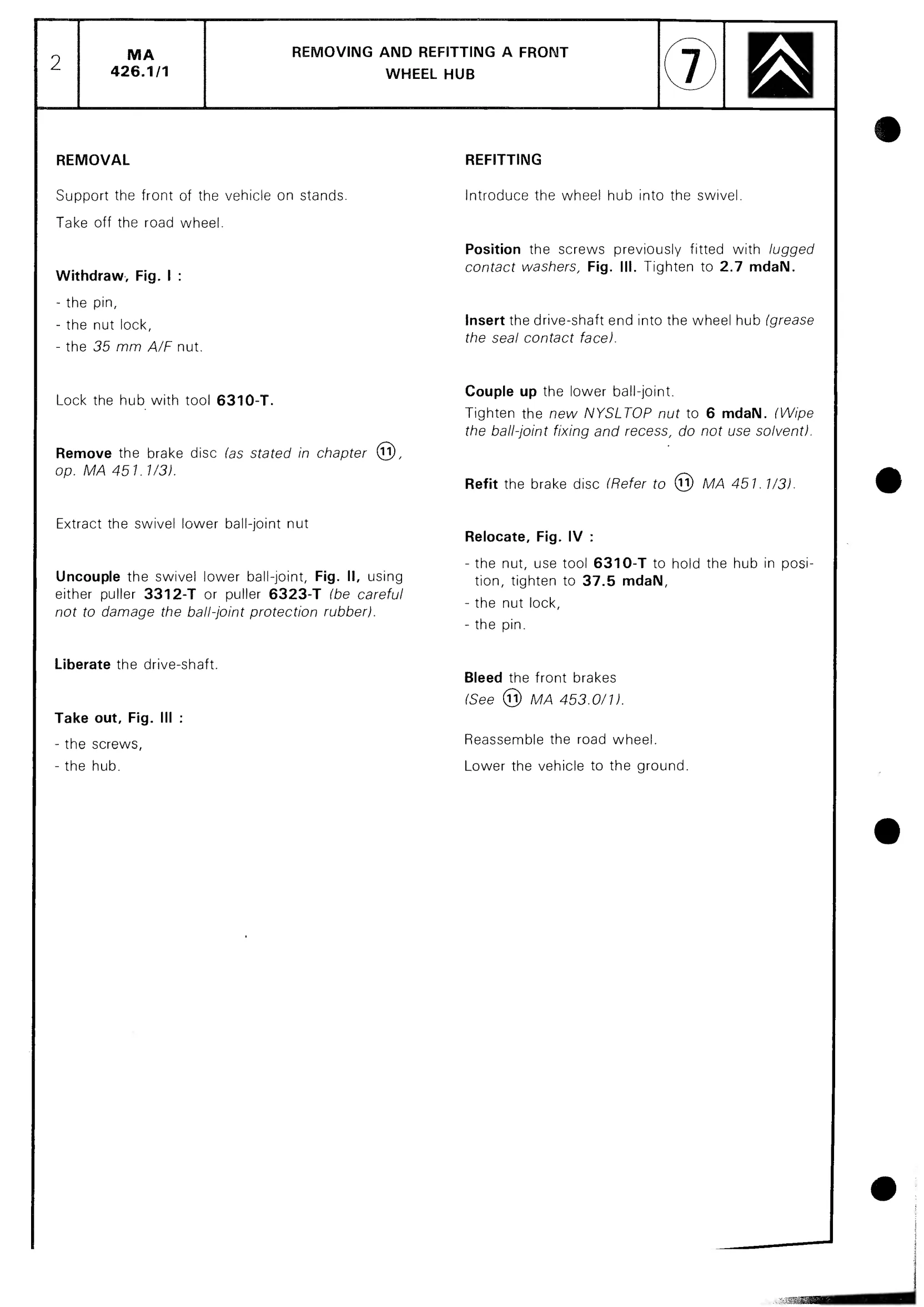

REMOVAL Support the front of the vehicle on stands. Take off the road wheel. Withdraw, Fig. | : - the pin, - the nut lock, - the 35 mm A/F nut. Lock the hub with tool 6310-T. Remove the brake disc (as stated in chapter @, op. MA 457. 1/3). Extract the swivel lower ball-joint nut Uncouple the swivel lower ball-joint, Fig. Il, using either puller 3312-T or puller 6323-T (be careful not to damage the ball-joint protection rubber).
Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
