Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW

Directional control

Directional control, page 408 of 454 — 814 Repair Manual — Volume I
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

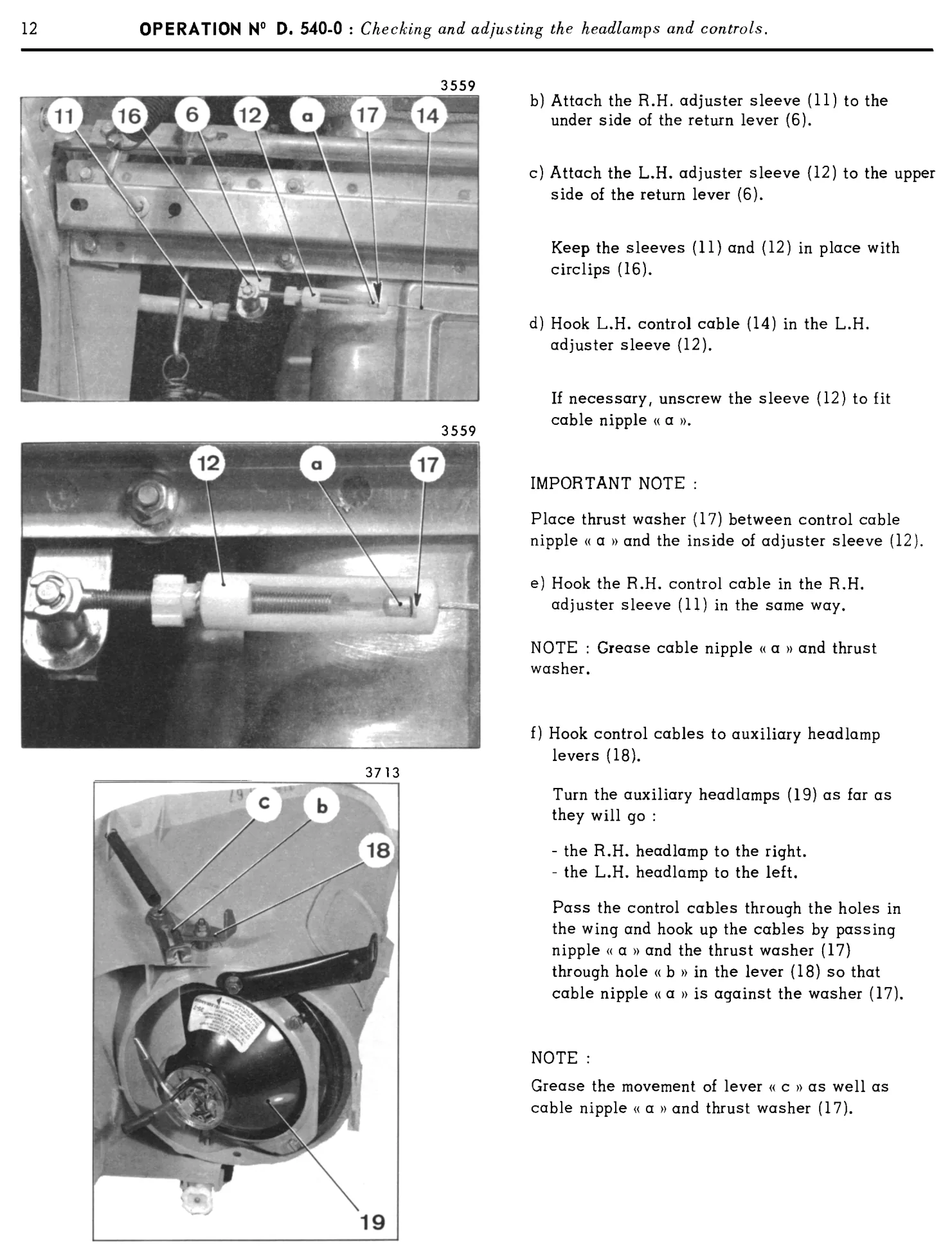

12 OPERATION N° D. 540-0 : Checking and adjusting the headlamps and controls. 3713 3559 b) Attach the R.H. adjuster sleeve (11) to the under side of the return lever (6). c) Attach the L.H. adjuster sleeve (12) to the upper side of the return lever (6). Keep the sleeves (11) and (12) in place with (16). d) Hook L.H. control cable (14) in the L.H. adjuster sleeve (12). If necessary, unscrew the sleeve (12) to fit cable nipple «a »,
