Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW

Directional control

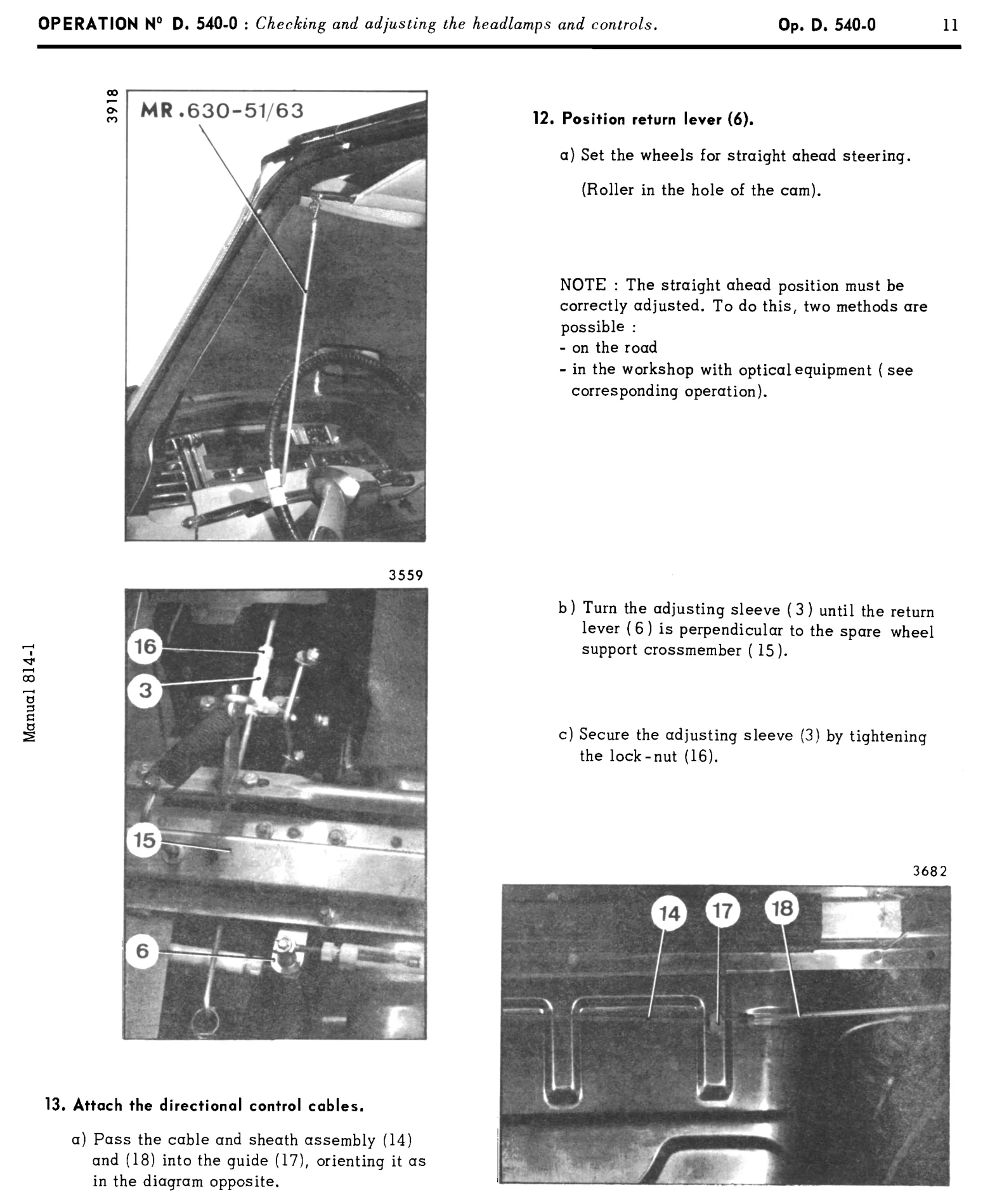

Directional control, page 407 of 454 — 814 Repair Manual — Volume I
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.406)

Attach rear (2) and front (4) rods to sleeve (3), Hook front rod (4) to return lever (6) in the hole « b » furthest from the line point the curved part « a » downwards, Hook the spacing rod (7) to return lever (6) in the hole « c » nearest to the line. Point the curved part « d » upwards, Fix the return lever plate (5) on to the spare wheel support (star washer under nut). Hook the return spring (8) in the hole «e» in the fresh air intake.
