Headlamps / Levelling from Sept '67

Headlamps / Levelling from Sept '67, page 399 of 454 — 814 Repair Manual — Volume I
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.398)

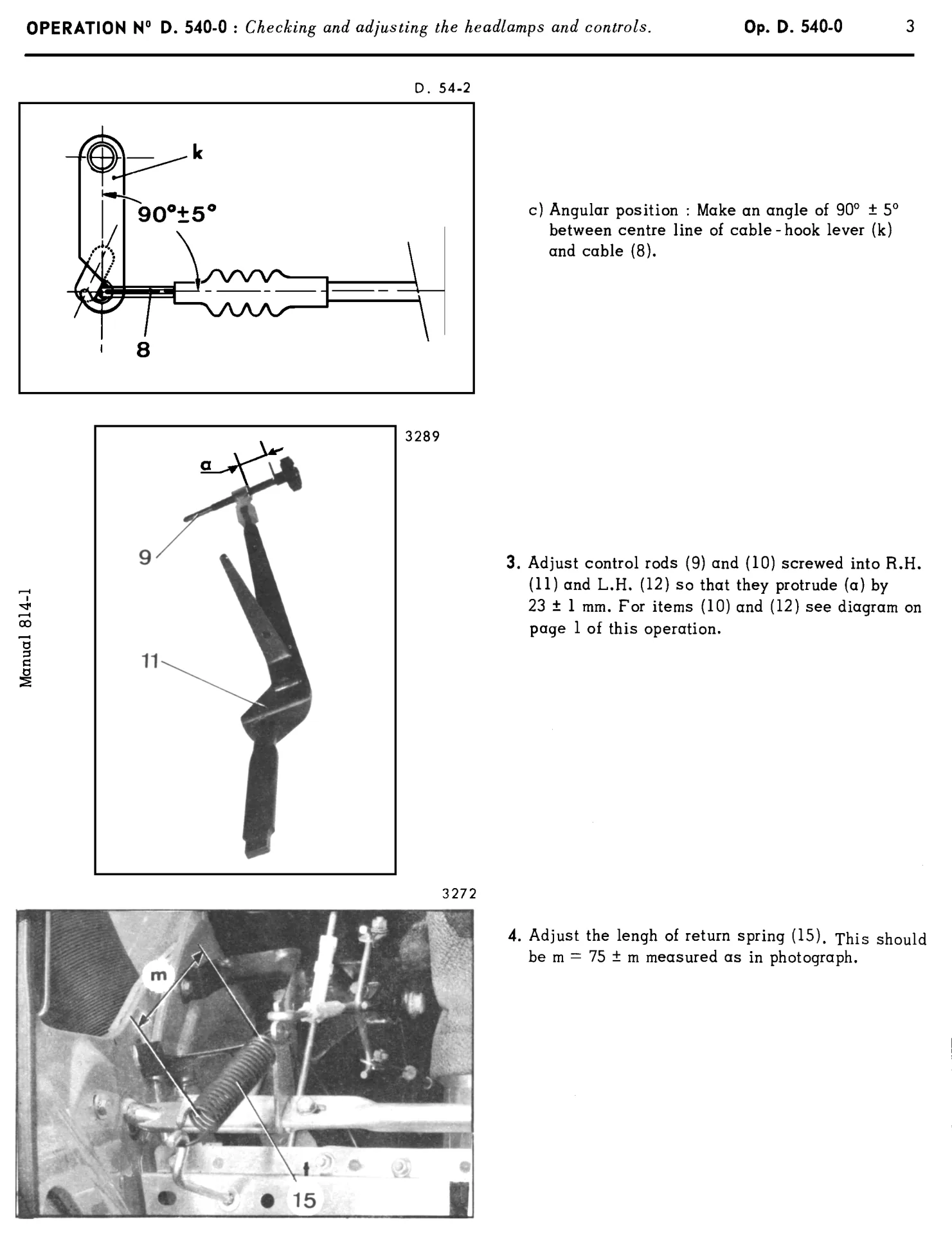

a) Lateral positioning : Measure the distance « b » (between face «a » of cable- hook lever «h » and outer side of R.H. This must be « b » = 8,5 to 10,5 mm. If necessary remove D. 54-5 clamp « g » on anti-roll bar (4) after loosening screw (2) in clamp «g » b) Angular position : Make an angle of 90° + 5° between line of cable - hook lever «h » and cable (7) by moving, if necessary, clamp -«g» on anti-roll bar.
