814 Repair Manual — Volume I — Page 385

Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW

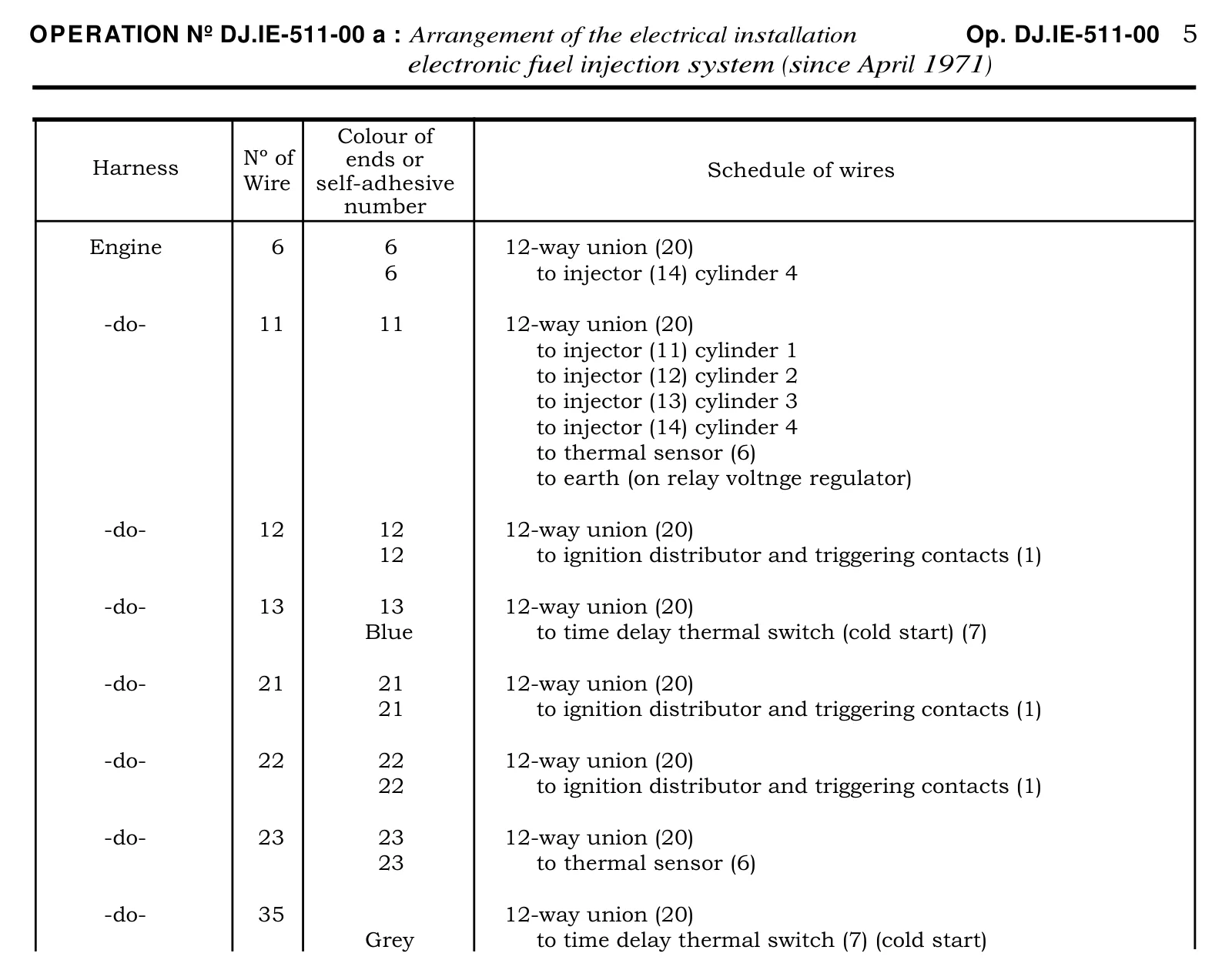

Wiring schedule

Wiring schedule, page 385 of 454 — 814 Repair Manual — Volume I
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.392)

With the dynamo turning at 4000 rpm. : - Adjust the voltage to 12.5 volts, the intensity must be between 30 and 33 A. - Adjust the voltage to 13 volts, the intensity must he between 30 and 33 A. - Adjust the voltage to 13.5 volts, the intensity must be between 18 and 33 A. - Adjust the voltage to 14 volts, the intensity must be between 5 and 28 A. - Adjust the voltage to 14.5 volts, the intensity must be between O and 15 A.
