814 Repair Manual — Volume I — Page 384

Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW

Wiring schedule

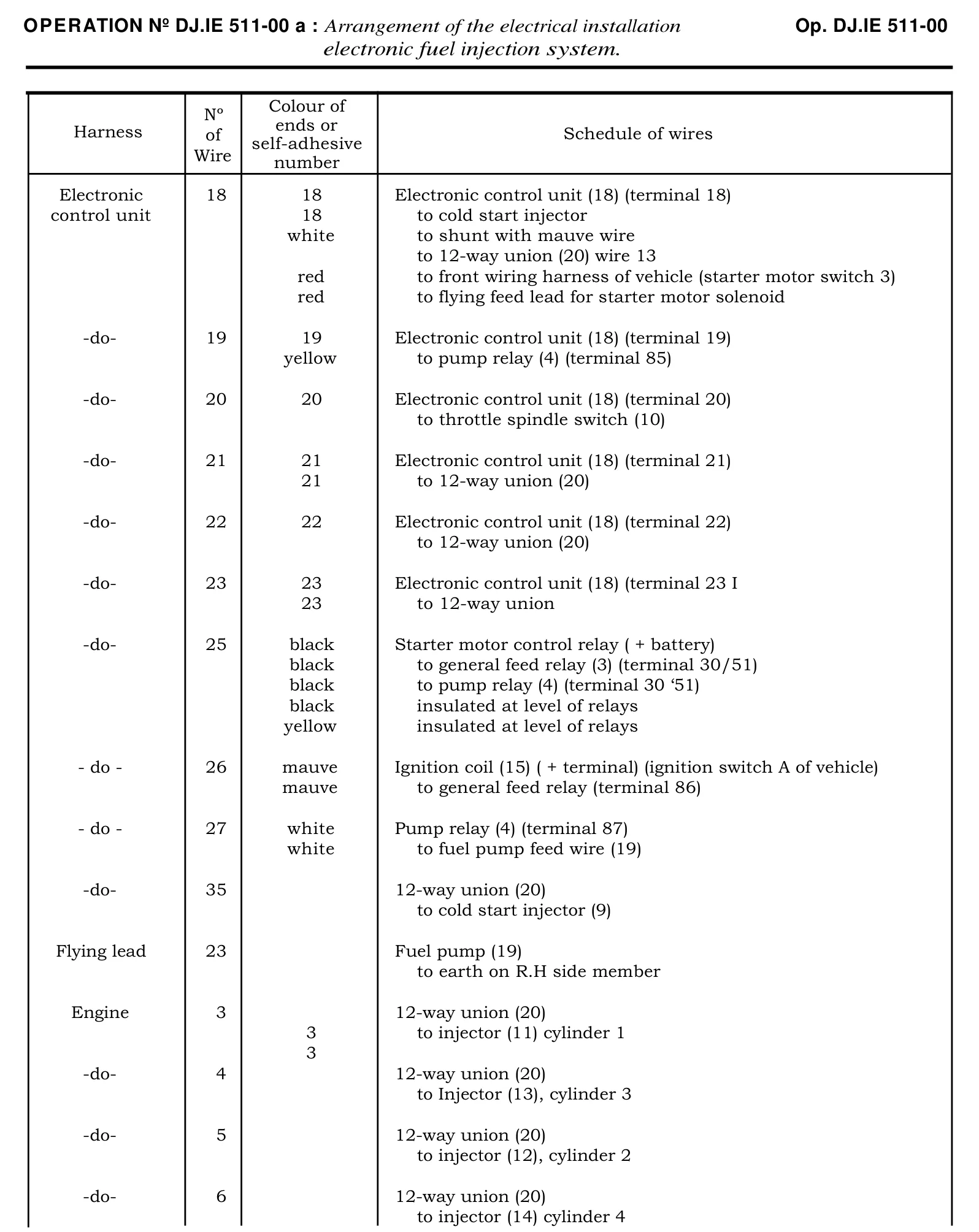

Wiring schedule, page 384 of 454 — 814 Repair Manual — Volume I
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.392)

2. Regulators for alternators : DUCELLIER regulator - 12 volts - 8360 A. PARIS-RHONE regulator - 12 volts - AYD 212. With the alternator turning at 4000 rpm. - Adjust the intensity to 8 A; the voltage must be between 13.40 and 14.40 volts. - Adjust the intensity to 20 A; the voltage must be between 13 and 14 volts.
