Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW

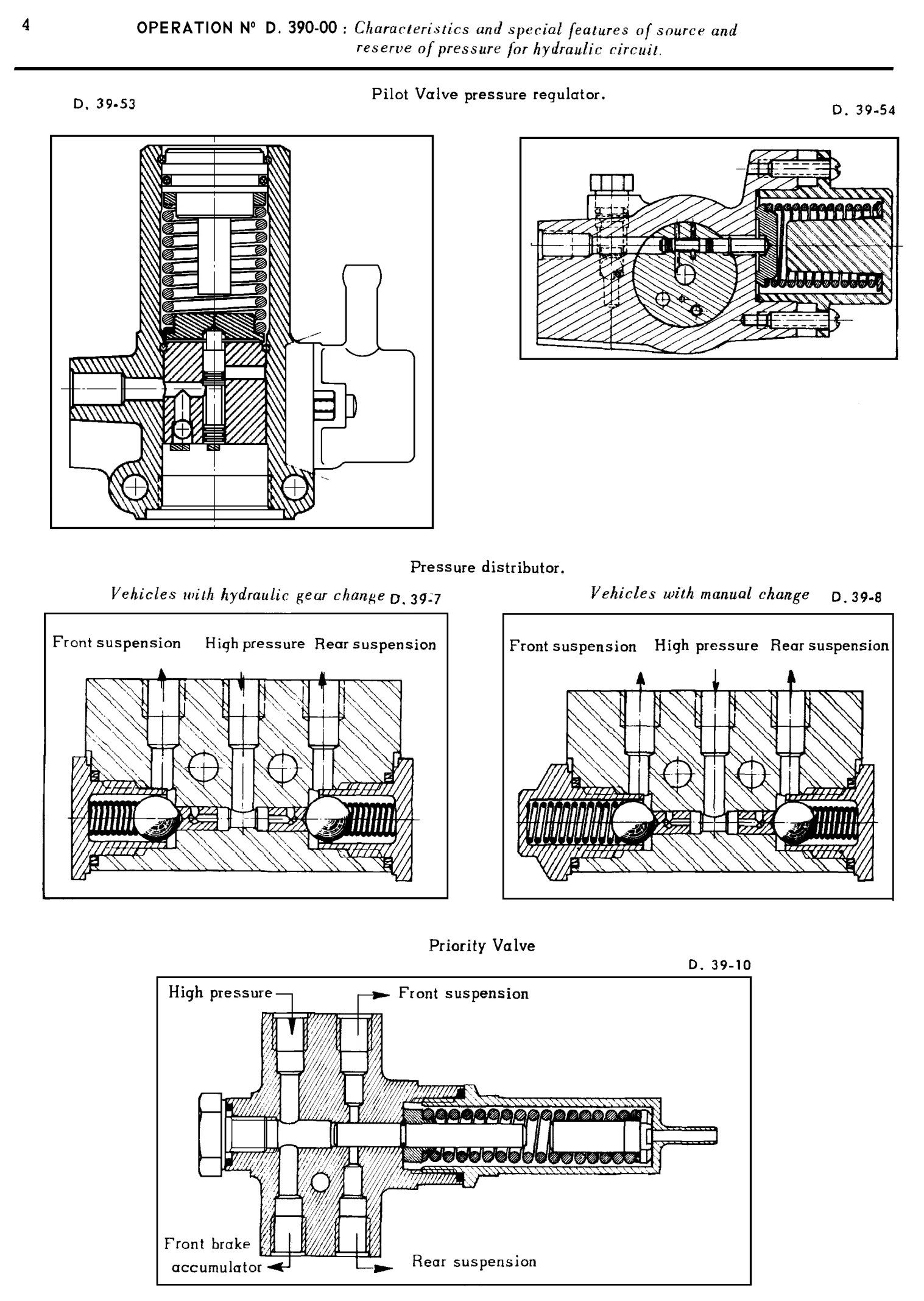

Hydraulic system / Source and reserve of pressure

Hydraulic system / Source and reserve of pressure, page 203 of 454 — 814 Repair Manual — Volume I
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.209)

b) Observe the pressure drop on the dial gauge. If it exceeds 10 bars (150 psi) within the next three minutes, a new check is necessary. If need be, check the following components to determine which one is leaking: - the front suspension cylinders (one or both) - the front height corrector. Find out which component is faulty by process of elimination.
