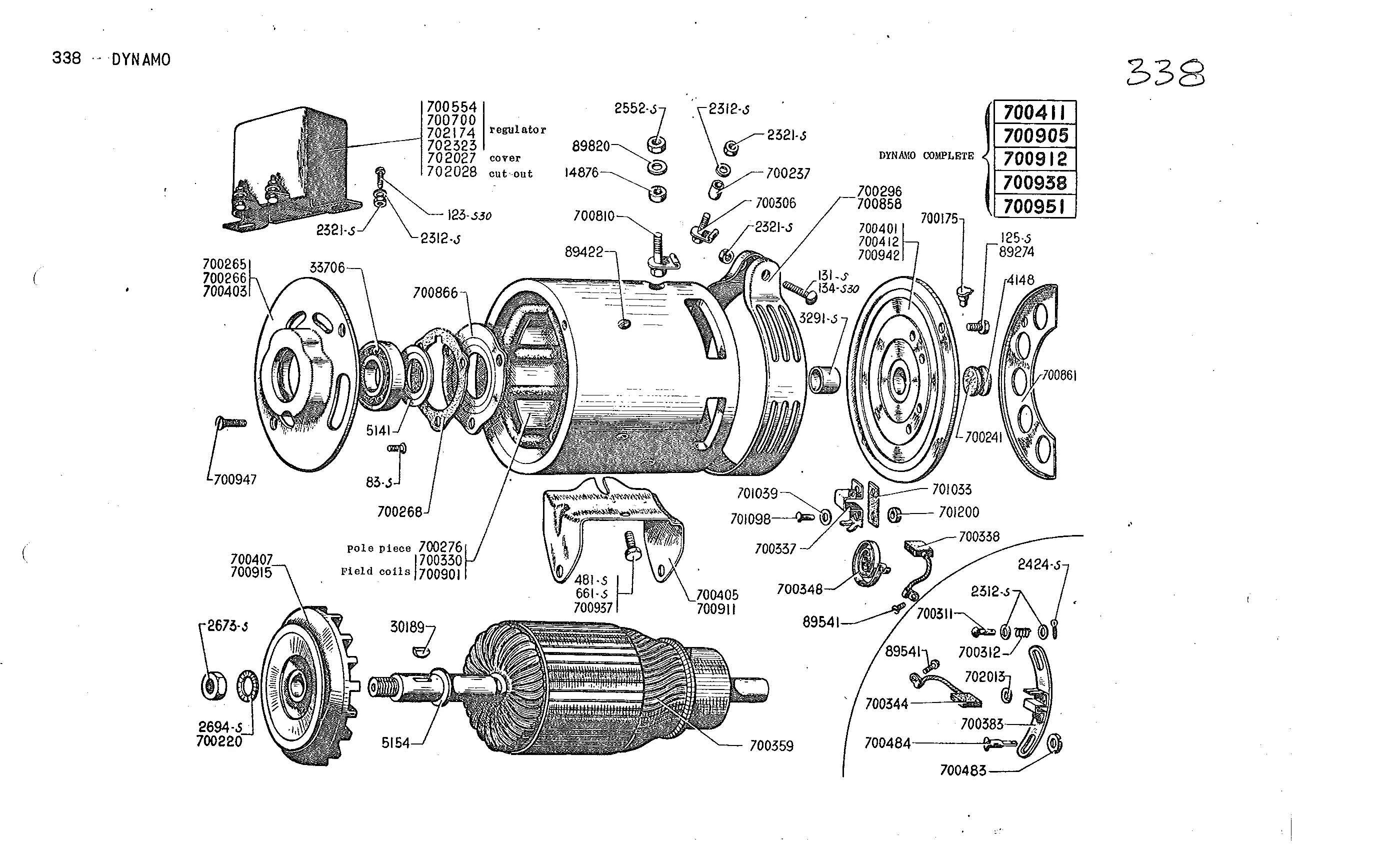

REPRESENTATIVE EXCERPT — FROM FOLLOWING PARTS LIST (from p.159)
COMPOUND DYNAMO UP TO SEPTEMBER i934. DYNAMO WITH REGULATOR SEPTEMBER 1934 TO SEPTEMBER 1945 PYNAMO WITH REGULATOR ON SCUTTLE AFTER SEPTEMBER 1945 Screw round head 4 i¢ long. Fixing end cover plate Screw round head, pointed 5 to long, Fixing cut- out and regulator i Screw round head 5 i5 long. Fixing rear end plate Screw round head 5 30 long. Fixing dust cover band Screw round head pointed 5 37.5 long. Fixing dust cover band with felt P.o,
