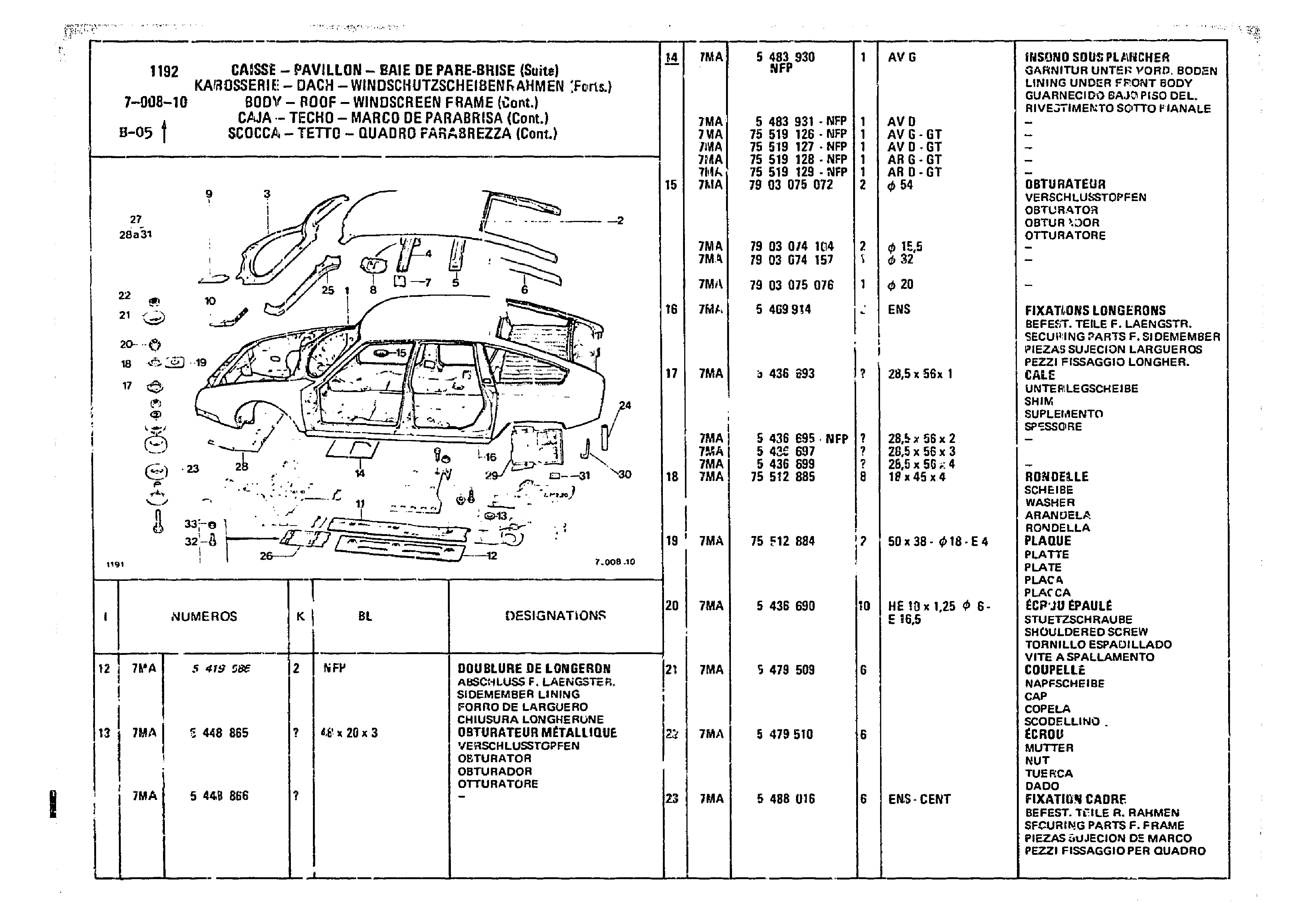

PART DESCRIPTIONS ON THIS PAGE
ste | LINING UNDER FRONT BODY | SHIM | WASHER | ¢18-E4 PLAQUE 50x | PLATTE | PLATE | SHOULDERED SCREW | CAP | MUTTER | NUT | DADO | n ENS- CENT FIXATION CADRE | SFCURING PARTS F. FRAME
Vehicle Application: Citroën CX Vehicles · July 1979 – June 1981
